Hand Washing Tank

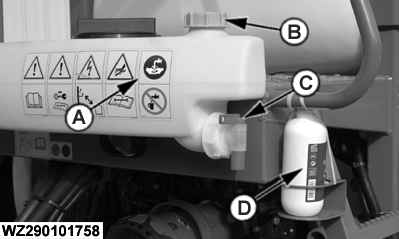

There is a separate 20 liter hand washing tank (A) with tap (C) on the left-hand side of the machine, for personal hygiene such as washing of hands and means of personal protection.

Remove cap (B) and fill the tank with clean water.

There is a holder with a soap pump (D) next to the hand washing tank.

The hand washing tank must always be filled with clean water.

A-Hand washing tank
B-Filler neck cap
C-Drain tap
D-Soap pump holder

WZ00085,0000391 -19-22AUG05-1/1
