Circulation Valve

The circulation valve is located at the front side of the operator's station. This valve determines the return flow direction of the pressure regulator. When valve (A) is set in position (B), the liquid returns into the tank. When valve (A) is set in position (C), the liquid returns to the suction side of the pump.

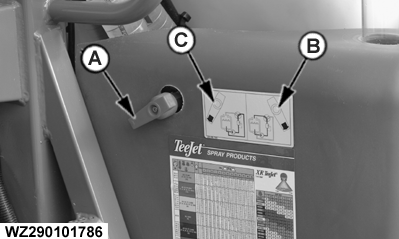

A-Circulation valve
B-Return flow pressure regulator return to tank
C-Return flow pressure regulator return to suction side of the pump

WZ00085,0000399 -19-29AUG05-1/1
