Drawbar
The 700 series sprayer can be fitted with a lower linkage drawbar (A), an upper linkage drawbar (B) or with a steering drawbar in lower (C) or upper (D) linkage. The steering drawbar is equipped with a single hydraulic cylinder. An optional second steering cylinder is possible. The steering cylinders can be equipped with optional adjustable restrictors.
The lower linkage drawbar is suitable for tractors with swaying drawbar, Hitch, Pickup-Hitch or Piton Fix, if the proper tow eye is available. If a height adjustable tow hook on the tractor can be lowered far enough and the PTO remains free, then it is also possible to connect this drawbar to tractors with such a height adjustable tow hook. The upper linkage drawbar can be connected to height adjustable tow hook with the corresponding tow eye on the drawbar. Please see also items "Drawbar Tow Eyes" and "Coupling to the Tractor" in section "Coupling and Uncoupling of the Sprayer".
The steering drawbar can be set in a low position (C) or in a high position (D). In the low position, the steering drawbar can be connected to tractors with swaying drawbar, Hitch, Pickup-Hitch or Piton Fix, if the proper tow eye on the sprayer drawbar is available. If a height adjustable tow hook on the tractor can be lowered far enough and the PTO remains free, then it is also possible to connect this drawbar to tractors with such a height adjustable tow hook with the corresponding tow eye on the drawbar. With the steering drawbar set in a high position, the drawbar can be connected as upper linkage to tractor with a tow hook in a high position. Please see also items "Drawbar Tow Eyes" and "Coupling to the Tractor" in section "Coupling and Uncoupling of the Sprayer".

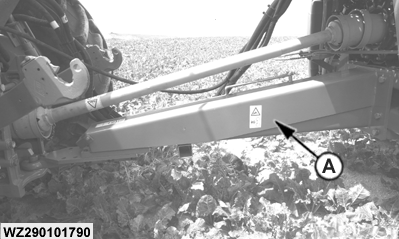

A-Lower linkage drawbar, fixed

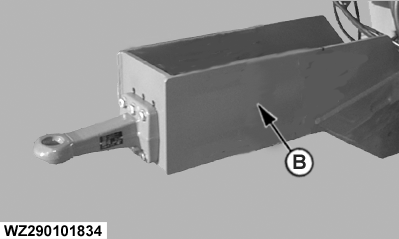

B-Upper linkage drawbar, fixed

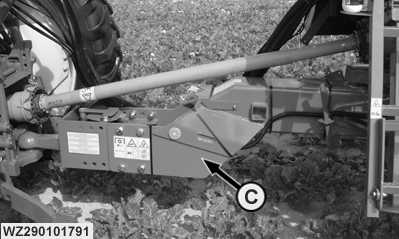

C-Steering drawbar (low position)

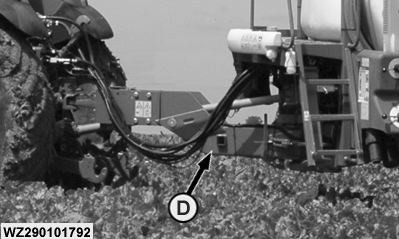

D-Steering drawbar (high position)
|
