Digital Tank Level Indicator

If a tank pressure sensor is fitted in the bottom of the tank, it is possible to read the actual tank volume accurately at the display in the operator's station and in the EL-4 display. The tank pressure sensor is a very sensitive electronic component and must not be struck or cleaned with high pressure, as the sensor could be damaged.

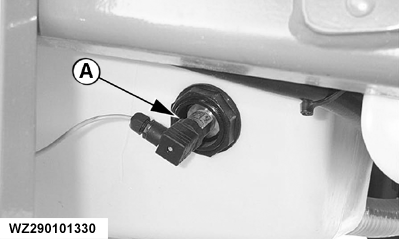

A-Tank level sensor

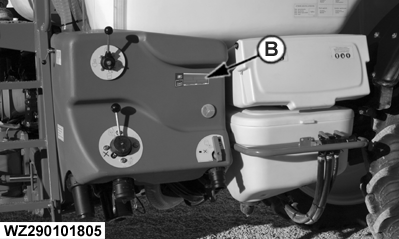

B-Display

WZ00085,00003A6 -19-02SEP05-1/2

The surface sprayed (ha) and the quantity of liquid sprayed (l) are displayed alternately in field (A) in the right-hand bottom corner with the master shut-off valve in the off position. When the master shut-off valve is opened, this value will automatically switch to the actual tank content and the remaining surface which can be sprayed. To reset both values (surface sprayed and the quantity of liquid sprayed) to zero, press and hold down the "+" and "-" keys simultaneously for three seconds, with switch "M" of the master shut-off valve in the off position.

WZ00085,00003A6 -19-02SEP05-2/2
