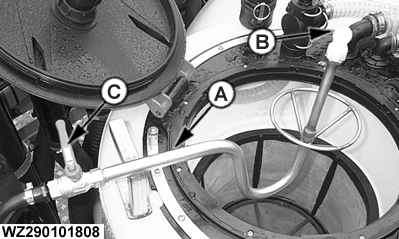

Rinsing Head in Filling OpeningThe rinsing head for cleaning empty packaging (A) at the filling hole is a U-trap with rinsing head. After opening the filling hole, rinsing head (B) can be removed from the sleeve and turned 90° so that it stands proud of the filling hole. The feeder pipe running to the rinsing head is connected to the pressure selection valve. This valve must be set to the "chemical inductor / rinsing head" position in order to use the rinse head for cleaning the empty packaging. Refer to "Pressure Selection Valve" in section "Operation of the Machine". An extra ball valve (C) is fitted in the supply line to the rinsing head. The empty packaging can be placed above the rinsing head, so that the inside of the barrel is cleaned upon opening the ball valve. A frame is available to hold empty bags etc. open while they are being rinsed clean. Packagings must be rinsed with clean water, which must not contain any chemical. Clean water can be sucked from the rinse tank or via the external suction unit. Also refer to "Rinse Tank" in section "Operation of the Machine". |
|
