Hose Reel with Washing Brush and Spray Gun

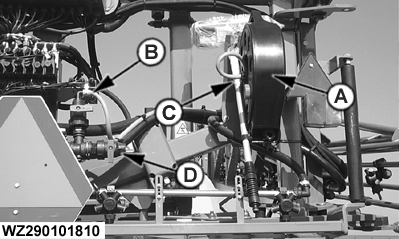

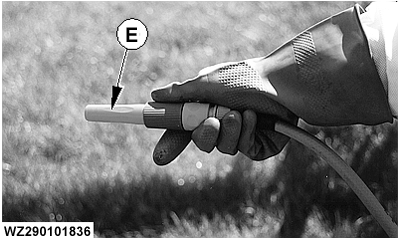

External cleaning of the machine must preferably take place on the field in order to avoid discharge of crop protection chemicals into the mains water network or surface water. At the center frame of the boom two connections can be used for connection of a hose reel (A) with washing brush (C) and spray gun (E) for this purpose. Washing brushes clean the machine much more thoroughly and use much less water than spray guns. During external cleaning, take due account of the electrical components; if necessary, cover them with plastic. The hose reel contains 16,5 m hose in order to reach the entire spray boom. The hose reel can be rolled up using handle by turning it in the direction indicated (anti-clockwise). A quick release connector can be used to connect both the spray gun (E) and the washing brush (C). The brush can be turned through 360° by pressing the orange button on the brush handle. There is a knob at the top of the washing brush handle, with three positions for operation of the washing brush. |
|
CAUTION:
Always wear means of personal protection during cleaning activities.
WZ00085,00003AA -19-05SEP05-1/1 |
