Spray Gun For Chemical Inductor

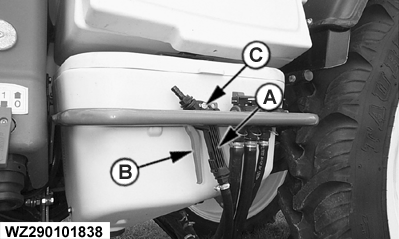

The spray gun (A) can be used for rinsing the interior of the chemical inductor. The spray gun can only be operated if the chemical inductor is activated via the pressure selection valve. Take spray gun out of the bracket (C) and operate it via handle (B). Only use the spray gun if the pump sucks clean water for filling or from the rinse tank.


A-Spray gun
B-Handle
C-Bracket

WZ290101838

WZ00085,00003D5 -19-12SEP05-1/1
