Hydraulic Connection

causym CAUTION: Pressurized hydraulic liquids may penetrate the skin and cause serious injury. Release the pressure before disconnecting any hydraulic or other hoses. Tighten all connections before allowing the pressure to build up. Keep hands and body away from openings and nozzles which eject pressurized liquids. When looking for any leakage, do not use your hands, but a piece of paper or cardboard.

ANY liquid penetrating the skin must be removed surgically within a couple of hours to prevent inflammation.

X9811

WZ00085,00003E2 -19-12SEP05-1/3

Connection on Machines with Hydraulic Operation by Tractor Selective Control Valves
  • Connect hydraulics for height adjustment (A).
  • Connect hydraulics for spray boom folding/unfolding (B).
  • Connect hydraulics for controlling spray boom tilt (C).

The hydraulic hoses have been provided with coloured protective caps. The protective cap colours have the following meaning:

  • red = double-acting selective control valve pressure connection, spray boom folding/unfolding
  • blue = double-acting selective control valve return connection, spray boom folding/unfolding
  • black = single-acting selective control valve connection, spray boom height adjustment
  • yellow = double-acting selective control valve pressure connection, spray boom tilt
  • green = double-acting selective control valve return connection, spray boom tilt

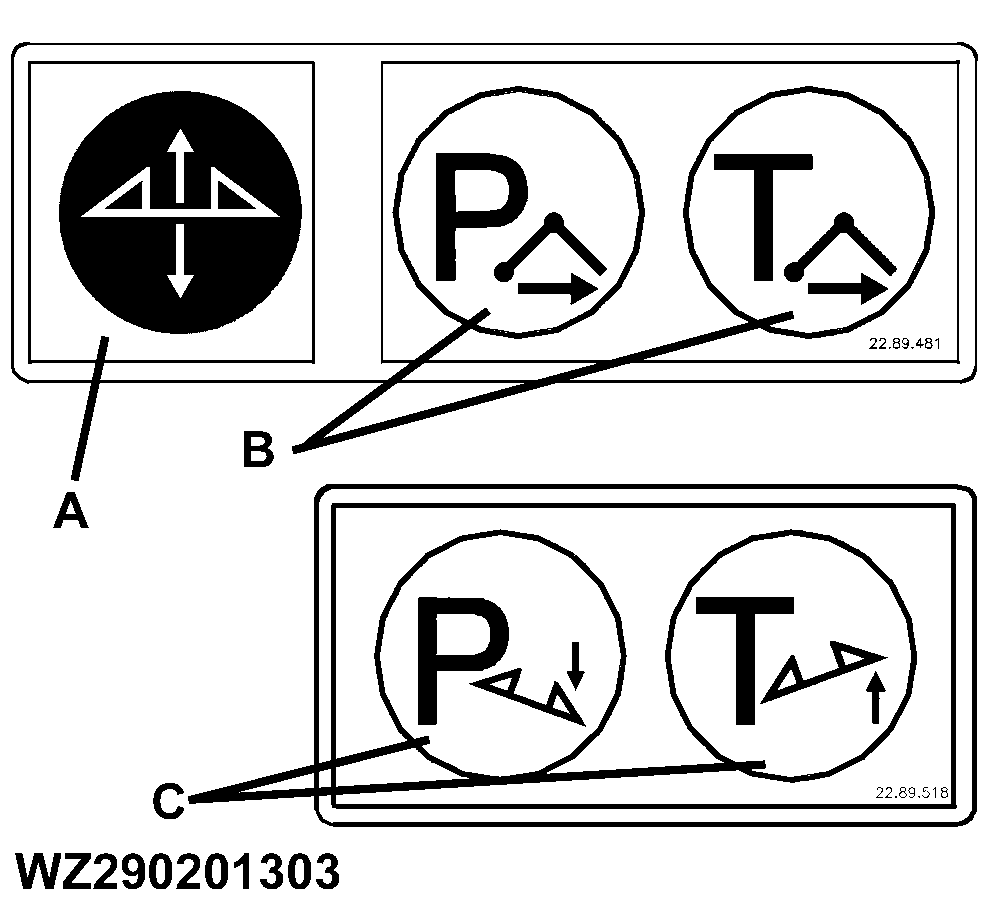

WZ290201303


A-Spray boom height adjustment connection
B-Spray boom folding/unfolding connection
C-Spray boom tilt connection

WZ00085,00003E2 -19-12SEP05-2/3

Connection on Machines with Hydraulic Selector Box EHS-1
  • Connect hydraulics for height adjustment (A).
  • Connect hydraulics for spray boom folding/unfolding (B).
  • Connect hydraulics for steering drawbar (C), if fitted.

The hydraulic hoses have been provided with coloured protective caps. The protective cap colours have the following meaning:

  • red = double-acting selective control valve pressure connection, spray boom operation
  • blue = double-acting selective control valve return connection, spray boom operation
  • black = single-acting selective control valve connection, spray boom height adjustment
  • yellow = double-acting selective control valve pressure connection, hydraulic drawbar steering (optional)
  • green = double-acting selective control valve return connection, hydraulic drawbar steering (optional)
Connection on Machines with Electro-Hydraulic Operation (EHB-1 or EHB-2)

Connect hydraulics for electro-hydraulic operating system.

The hydraulic hoses are provided with coloured protective caps. The protective cap colours have the following meaning:

  • red = pressure connection
  • blue = pressureless return connection

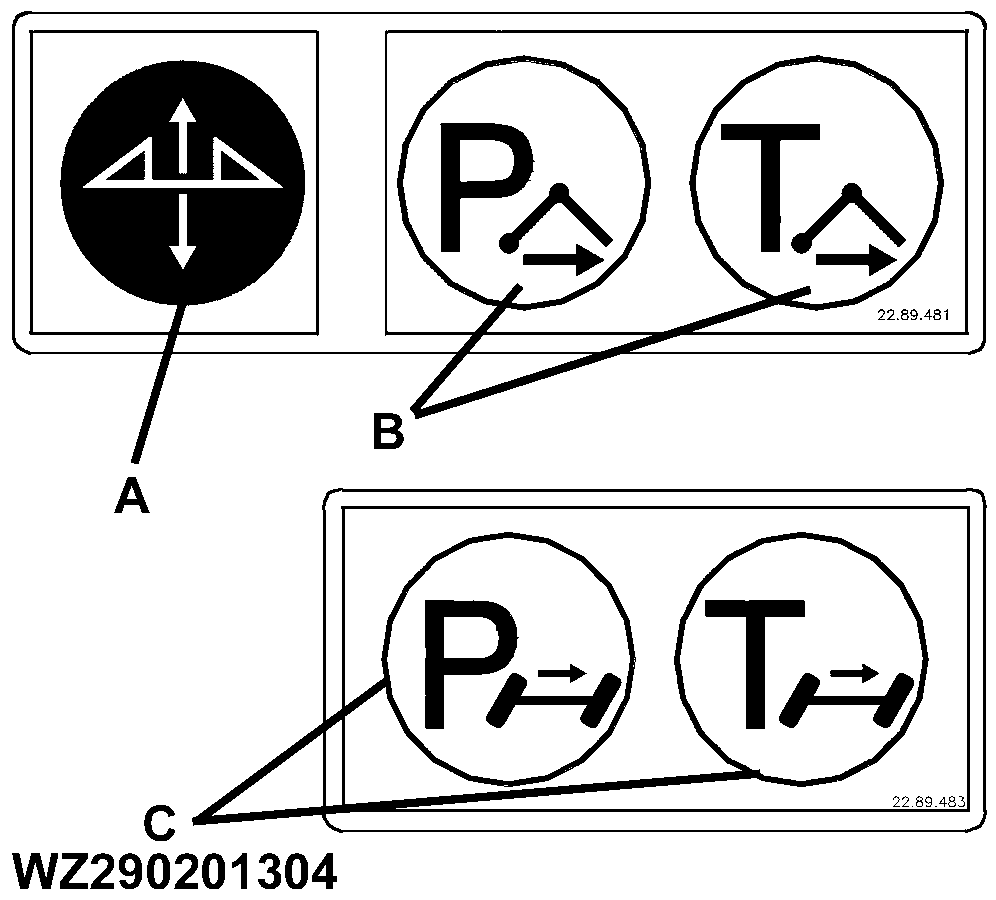

WZ290201304


A-Spray boom height adjustment connection
B-Spray boom folding/unfolding connection
C-Steering drawbar connection (optional)

WZ00085,00003E2 -19-12SEP05-3/3
