Electrical Connection

• Plug in the public road travelling lights on the tractor.
• Connect power supply plug.
• Connect EL-4 control box.

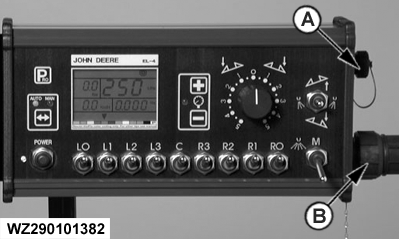

  The control box has two connectors on the right-hand side (as standard):

  • The lower male connector (B) is used to connect the 28-pole plug and cable coming from the machine receiver box.
  • If required, the top connector (A) can be used to connect a speed sensor (for working with other equipment). This connection remains unused while the sprayer is operated, as the speed signal is given by the 28-pole plug of the machine.

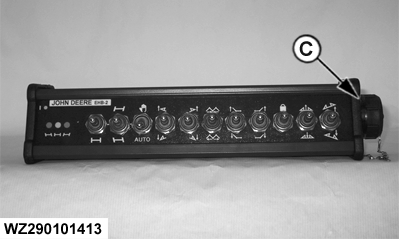

The EHS-1 hydraulic selector control box or EHB-1 or EHB-2 electro-hydraulic control box can be combined with the standard EL-4 control box and has one 28-pole female connector on the right side:

• Connector (C) is used to connect the 28-pole male plug and cable coming from the hydraulic receiver box.

A-4-pole connector
B-28-pole connector (male)
C-28-pole connector (female)
