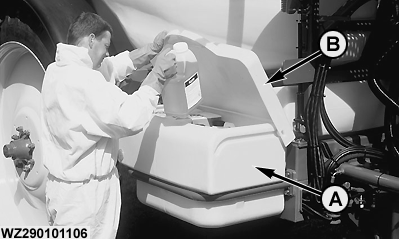

Transport Box for ChemicalsA completely closed crop protection chemicals tank (A) can be fitted on the right hand side of the sprayer with a maximum volume of 150 liters. The cover of the tank is hinged and can be lifted up (B) for a quick access to take i.e. smaller chemical containers. The cover can also be pulled forward and folded down to allow access for larger containers. The spray chemical receptacle has a drain plug, so that the concentrated chemical can be tapped off instead of leaking away, in the case of leakage.
|
|
AG,WZ00009,116 -19-18FEB02-1/1 |
