Protective Clothing Locker

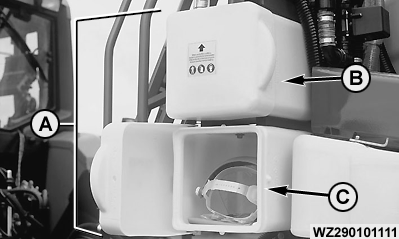

Two clothing lockers (A) located on the front left hand side of the sprayer provide a place to stow protective clothing, as well as other parts such as nozzles, filters, and cleaning brushes. The upper locker (B) is for clean parts, while the lower locker (C) is for contaminated protective equipment. Both clothing lockers have a lid which can be closed.

A-Protective clothing lockers
B-Clothing locker for clean clothing
C-Clothing locker for used clothing

AG,WZ00009,120 -19-07AUG00-1/1
