Wheel Fenders

The trailed sprayer can be fitted with wheel fenders to prevent that dirt will pollute the road and the sprayer and nozzles during transport. The wheel fenders for the row crop tires are 400 mm wide (A), the wheel fenders for flotation tires are 700 mm wide (B).

The wheel fenders are supported by three rods and can be adjusted to different track widths.

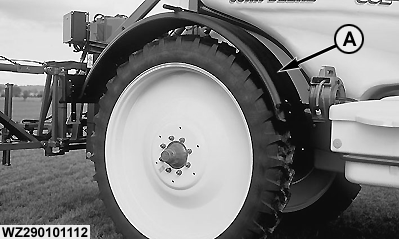

A-Wheel fender for row crop tires (400 mm)

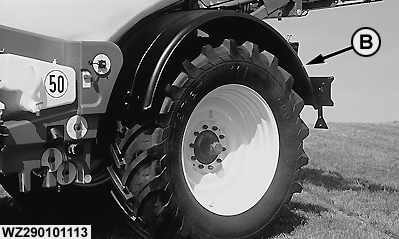

B-Wheel fender for flotation tires (700 mm)

AG,WZ00009,122 -19-07AUG00-1/1
