Hand Washing Tank

There is a separate 20 liter hand washing tank (A) with tap (B) on the left hand side of the machine, for personal hygiene such as washing of hands and means of personal protection.

Turn the securing strip (C), in order to remove the hand washing tank from its holder and fill it with water.

There is a holder with a soap pump (D) next to the hand washing tank.

The hand washing tank must always be filled with clean water.

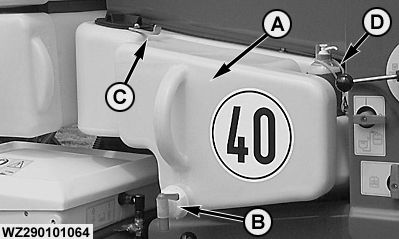

WZ290101064


A-Hand washing tank
B-Drain tap
C-Securing strip
D-Soap pump holder

AG,WZ00009,68 -19-02AUG00-1/1
