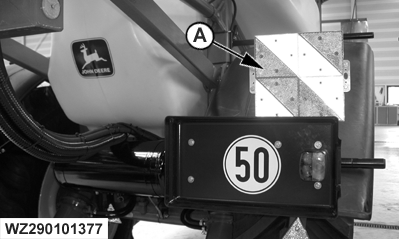

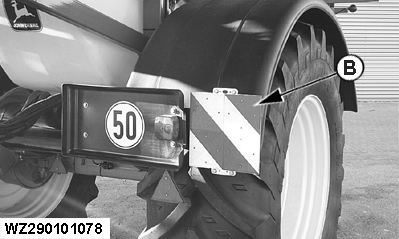

Reflector PlatesIf the transport width of the sprayer is wider than 2,55 m, the sprayer is fitted with reflector plates (A) for road transport 1 . With double folding booms the structure width is 2,55 m, but with wide tires and/or wider track widths transport width can exceed 2,55 m. The position of the reflector plates should be adjusted to the selected track width and fitted tires, in such a way that the edge of the reflector plates are in line with the outer edges of the wheel fender or tires.
|
|
