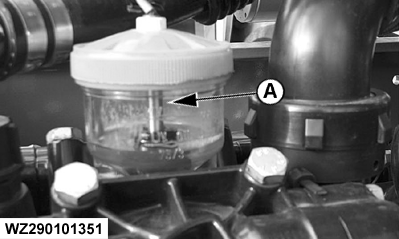

Pump Oil Level SensorThe mechanical parts of the diaphragm pump are lubricated with oil. A leakage may cause the oil level to drop, and a rupture of a diaphragm may lead to the spraying solution being mixed with oil, thus increasing the level in the reservoir. A pump oil level sensor (A) can be fitted to the pump(s), to warn the operator in these cases. If the pump oil level is not correct, a warning will be given on the GreenStar display, to check the oil level.
|
|
WZ00085,0000044 -19-19FEB02-1/1 |
