Drawbar
The 800i TF-series sprayer is fitted with a universal drawbar. The universal drawbar can be set in a low position (B) or in a high position (C). In the low position, the universal drawbar can be connected to tractors with swaying drawbar, Hitch, Pickup-Hitch or Piton Fix, if the proper tow eye on the sprayer drawbar is available. If a height adjustable tow hook on the tractor can be lowered far enough and the PTO remains free, then it is also possible to connect to tractors with a corresponding tow eye on the drawbar. With the universal drawbar set in a high position, the drawbar can be connected as upper linkage to tractor with a tow hook in a high position. Also see in "Drawbar Tow Eyes" for universal drawbar and "Coupling to the Tractor" in the section "Coupling and Uncoupling of the Sprayer".

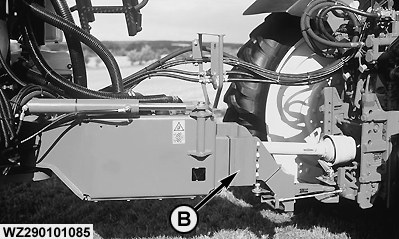

B-Universal drawbar (low position)

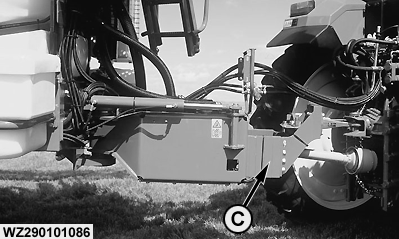

C-Universal drawbar (high position)
|
|
