Filling Opening
The raised filling opening has a diameter of 40 cm and has a hinged tank lid (A) with a vent and a basket strainer (B). The cover can be opened by turning it in the direction of the OPEN arrow and then pulling it up. The cover is closed by pressing down the cover and then turning in the direction of the CLOSE arrow. An additional tank vent (C) is fitted near the tank lid for sufficient ventilation when filling the tank at high capacity. The tank lid (D) on all 800 series models is integrated into the tank shape.

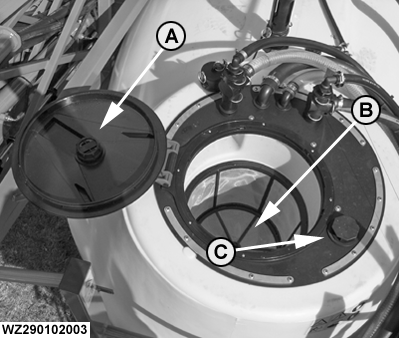

A-Hinged tank lid
B-Basket strainer
C-Additional vent

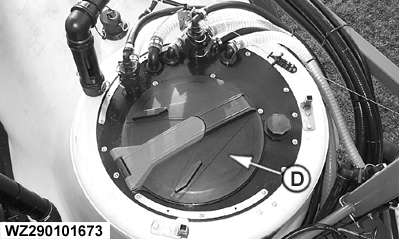

D-Hinged tank lid (closed)
|
