Drawbar Steering

If the drawbar is fixed, there are mechanical locks (A) between the drawbar and the frame. The drawbar needs to be locked on both sides to prevent any play.

Both types of drawbar can be fitted as fixed or automatic trailing drawbar. The drawbars comprise always a pivot point, so they can be upgraded to a steering drawbar later.

IMPORTANT: Do not use the trailing drawbar system with the boom folded in, to prevent instability.

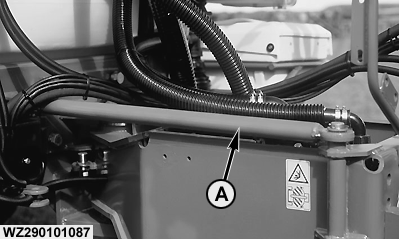

A-Fixed drawbar (universal)

WZ00085,00002A3 -19-02DEC04-1/1
