Track Width Adjustment with Fixed Axle

IMPORTANT: The maximum permissible track is 1.80 m.

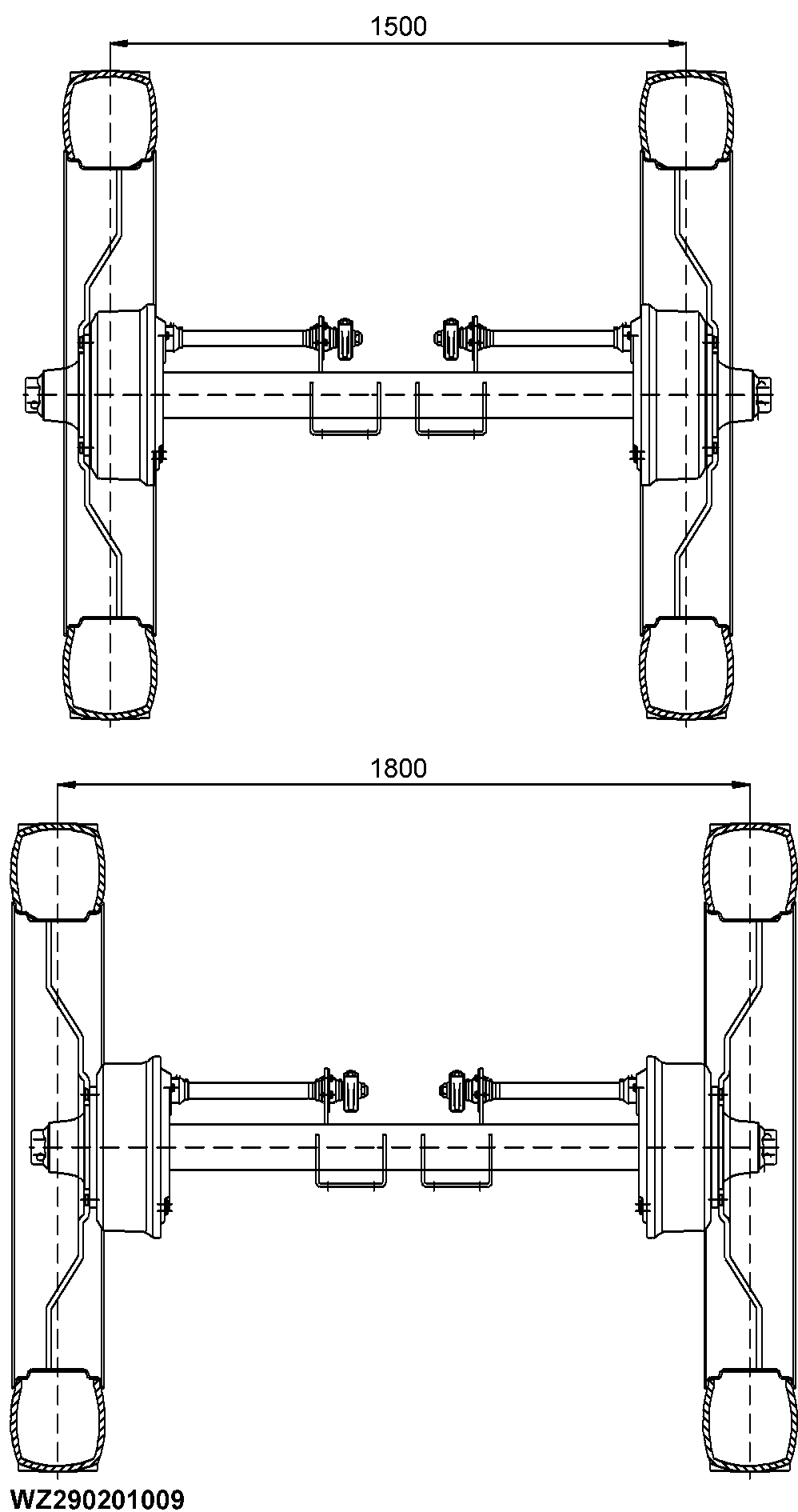

With the fixed axle fitted with row crop tires and wheels, the track width can be adapted by exchanging the left and right wheels. Due to the spherical shape of the flange, the track will change to 1.50 m or 1.80 m.

If the machine is fitted with flotation tires, only a 1.80 m track is possible.

If the wheels are reversed to adjust the track width, make sure that the machine is secured when jacked up. Always place additional support blocks under the axle.

The specified torque for the wheel nuts (M22x1.5) is 480 N·m. The nuts must be tightened in a cross pattern and checked regularly.
