Automatic Tracking System

NOTE: The automatic tracking system is optional equipment.

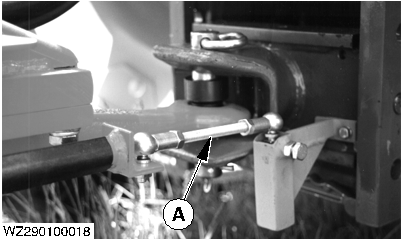

The steering rod (A) is connected to the tractor with pin joints.

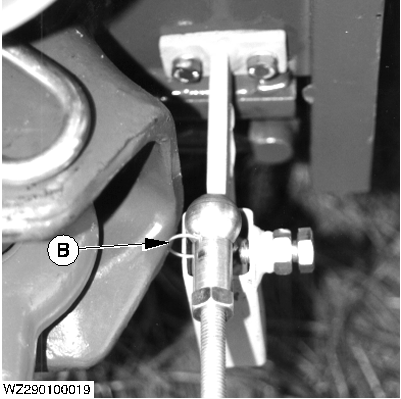

To uncouple the machine, only the steering rod on the tractor side needs to be disconnected. The steering rod is uncoupled by pulling spring clip (B) from the front pin joint.


A-Steering rod
B-Spring clip

WZ290100018
WZ290100019

WZ00085,00002EE -19-21FEB05-1/1
