Solution Tank

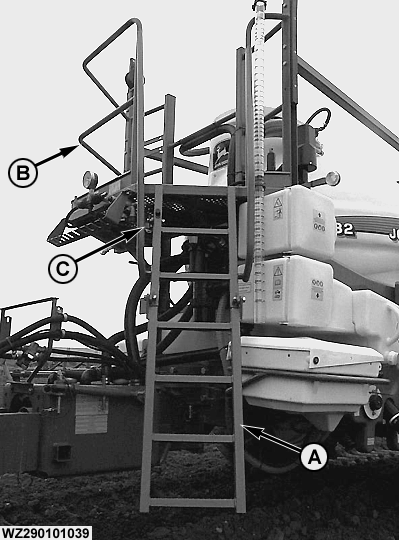

The machine is fitted with a polyethylene solution tank with a nominal tank volume of 3200 l (832 model) or 4000 l (840 model). The maximum tank volume is at least 5% larger than the nominal volume with respectively 3360 l and 4200 l. This extra volume is required for possible foaming. Allow for this when filling the tank, i.e. do not fill the tank with more than the nominal volume. The tank is mounted on the frame and is fully enclosed in supporting brackets at the sides and front. The filling opening can be reached with the ladder (A) on the left front of the machine, up the steps to the filling platform (B). To lower the ladder the lock (C) has to be released and then the ladder can be unfolded. When driving with the sprayer, the ladder should always be folded and locked, for safety and to avoid damage. NOTE: Due to the production process (special moulding procedure), the maximum tank volume may vary, the nominal volume + 5% will always be maintained. |
|
CAUTION:
You must not enter the tank for cleaning or repair!
WZ00085,00002F0 -19-05SEP06-1/1 |
