Spray Gun For Chemical Inductor

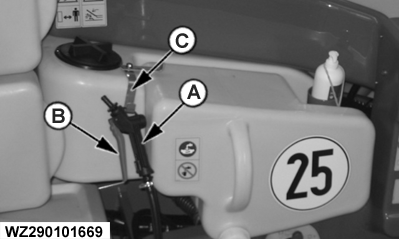

The spray gun (A) can be used for rinsing the interior of the chemical inductor. The spray gun can only be operated if the chemical inductor is activated via the pressure selection valve. To operate the spray gun take it out of the bracket (C) it can be operated via handle (B). Only use the spray gun if the pump sucks clean water for filling or from the rinse tank.

A-Spray gun
B-Handle
C-Bracket

WZ00085,00002FD -19-04APR05-1/1
