Transfer Valve to Pump Liquid Back to Storage Tank

The transfer valve with hose connection can be used to pump remaining liquid (e.g. liquid fertilizer) from the solution tank back to a storage tank. There is a 1.5" hose connection (B) available, to which different kinds of couplings can be attached, like camlock (quick release coupling), Fire Service and C-coupling (Storz). These couplings are delivered separately (male and female parts with hose barb and hose clamps). The male coupling should be screwed into the 1.5" thread connection on the left front side of the sprayer and the female coupling with hose barb should be connected to a delivery hose with the hose clamps.

To pump the remaining liquid from the solution tank back to a storage tank, connect the delivery hose to the transfer valve connection and open the transfer valve (A). Open the main shut-off valve and close the boom section valves, agitation and set the circulation valve to "return to tank". Let the pump run, so the liquid can be pumped back to the storage tank.

NOTE: The transfer valve should be properly rinsed after use. This can be done by setting the suction valve from the pump to rinse water. If rinse water is purged out via the transfer valve (A), it can be closed. The machine can be rinsed as described in section "Working with the Machine".

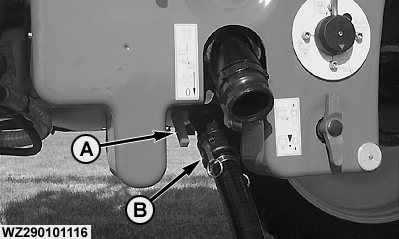

A-Transfer valve
B-Hose connection

WZ00085,00002FF -19-04APR05-1/1
