High Pressure Cleaner
The on-board high-pressure washer comprises a high-pressure piston pump (100 bar, 15 l/min.) which is hydraulically driven by the tractor. This unit is equipped with a bi-directional hydraulic motor preventing any risk of damage in case hydraulic hoses are not properly connected to the tractor. The high-pressure washer is connected to the rinse water tank (400 Liter) and delivers a powerful jet of water to the spray lance. A hose reel with a 16.5 meter hose allows for the cleaning of all sprayer components. The high-pressure cleaner must be connected with couplers to a tractor selective control valve. The pressure-free return is equipped with a non-return check valve.

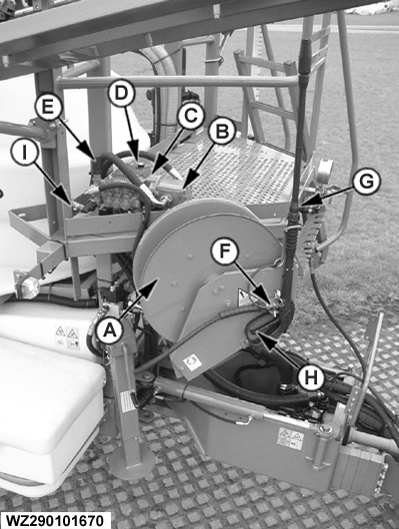

To operate the high pressure cleaner there must be enough clean water in the rinse water tank and valve (I) must be opened. The pressure can be adjusted with manual pressure regulator (E). The cleaning pressure must not exceed 100 bar and can be checked at pressure gauge (E). The hose reel (A) is self-retracting. To operate the pressure cleaner open lock (F), take the spray gun (G) out of the transport position and operate handle (H). The oil in the hydraulic motor can be refilled at oil fill plug (D). Oil capacity is 0.4 l. Only use oil that meets specification SAE 30W or equivalent. Check the oil level regularly via the indicator gauge. The oil must be changed after the first 50 hours of operation and then every 500 hours. |
|
CAUTION:
Spray from high pressure nozzles can penetrate the skin and cause serious injury. Keep spray from contacting hands or body and use protective clothing, gloves and mask.
WZ00085,0000300 -19-04APR05-1/1 |
