Digital Tank Level Indicator

If a tank pressure sensor is fitted in the bottom of the tank, it is possible to read the actual tank volume accurately in the GreenStar display. The tank pressure sensor is a very sensitive electronic component and must not be struck or cleaned with high pressure, as the sensor could be damaged.

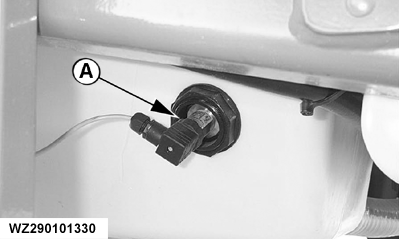

A-Tank Level Sensor

WZ00085,0000302 -19-04APR05-1/1
