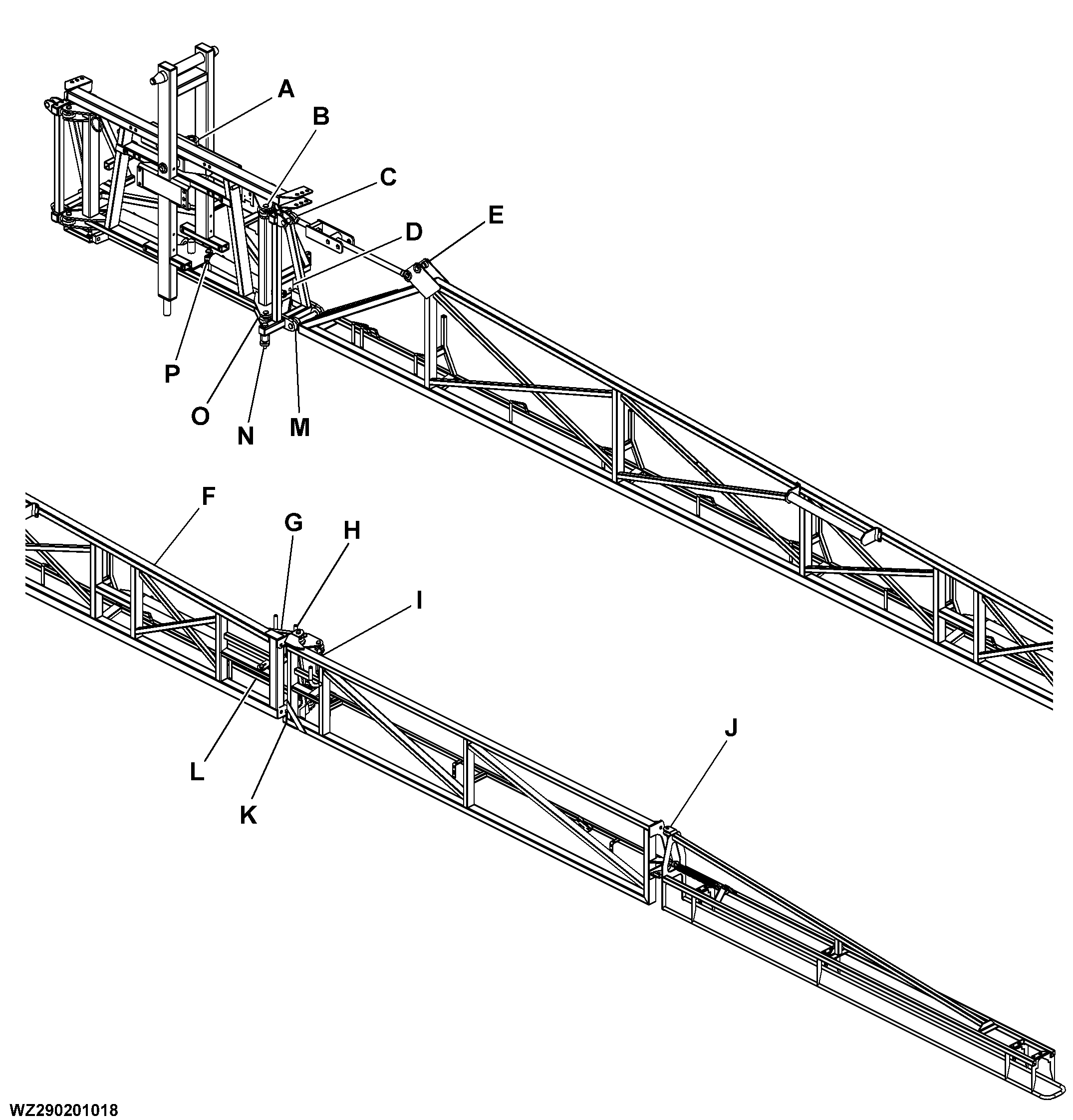

Double Folding Spray Boom Lubricating Nipple Summary

WZ290201018

WZ00085,000030E -19-05APR05-1/19


A-Anti yaw system pivot points
B-Upper Horizontal Pivot of First Boom Segment
C-Adjustable Upper Connection Between Centre Frame And First Boom Segment
D-Boom Folding Cylinders of First Boom Segment, Piston Rod Side
E-Fixed Rod Connection Between Centre Frame And First Boom Segment


F-Boom Folding Cylinders of Second Boom Segment, Piston Side
G-Boom Folding Cylinders of Second Boom Segment, Piston Rod Side
H-Upper Pivot Between First And Second Boom Segment
I-Adjustable Top Link Between First And Second Boom Segment


J-Upper Pivot of Boom Breakaway Segment
K-Lower Pivot Between First And Second Boom Segment
L-Folding Mechanism, Second Boom Segment Connection to First Boom Segment
M-Lower Vertical Pivots of First Boom Segment


N-Pivots Between Connection Rod And First Boom Segment
O-Lower Horizontal Pivot of First Boom Segment
P-Boom Folding Cylinders of First Boom Segment, Piston Side
Q-Pivot of Boom Tilt Hydraulic Cylinder

Grease lubricating nipples

The lubricating nipples must be lubricated regularly with JD MULTILUBER GREASE or John Deere SD POLYUREA GREASE.

WZ00085,000030E -19-05APR05-2/19

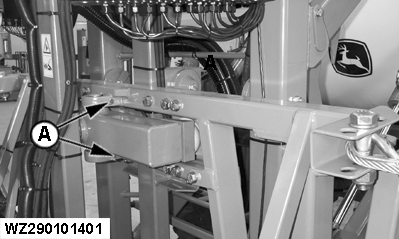

Anti yaw system pivot points (A)

Clean the pin joints on the top and bottom of the anti-yaw system regularly and grease the lubricating nipples (arrow) well.

WZ290101401

WZ00085,000030E -19-05APR05-3/19

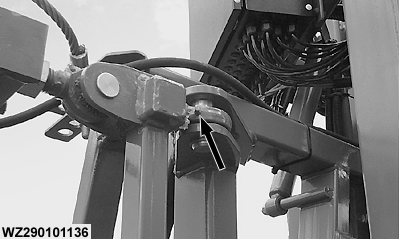

Upper Horizontal Pivot of First Boom Segment (B)

Clean the lubricating nipples (arrow) of the spray boom regularly and grease well.

WZ290101136

WZ00085,000030E -19-05APR05-4/19

Adjustable Upper Connection Between Centre Frame And First Boom Segment (C)

Clean the lubricating nipples (arrow) of the spray boom regularly and grease well.

WZ290101137

WZ00085,000030E -19-05APR05-5/19

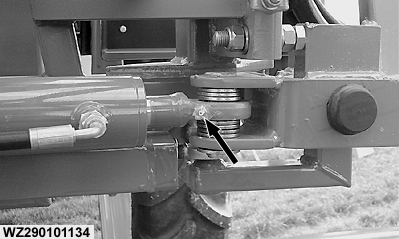

Boom Folding Cylinders of First Boom Segment, Piston Rod Side (D)

Clean the lubricating nipples (arrow) of the spray boom regularly and grease well.

WZ290101134

WZ00085,000030E -19-05APR05-6/19

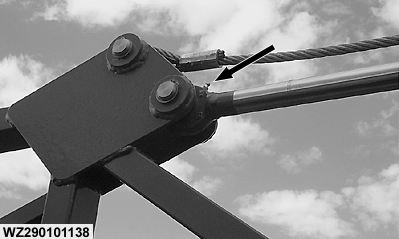

Fixed Rod Connection Between Centre Frame And First Boom Segment (E)

Clean the lubricating nipples (arrow) of the spray boom regularly and grease well.

WZ290101138

WZ00085,000030E -19-05APR05-7/19

Boom Folding Cylinders of Second Boom Segment, Piston Side (F)

Clean the lubricating nipples (arrow) of the spray boom regularly and grease well.

WZ290101144

WZ00085,000030E -19-05APR05-8/19

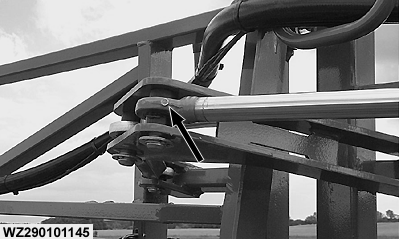

Boom Folding Cylinders of Second Boom Segment, Piston Rod Side (G)

Clean the lubricating nipples (arrow) of the spray boom regularly and grease well.

WZ290101145

WZ00085,000030E -19-05APR05-9/19

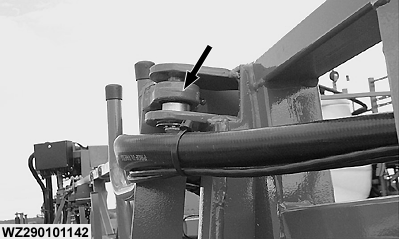

Upper Pivot Between First And Second Boom Segment (H)

Clean the lubricating nipples (arrow) of the spray boom regularly and grease well.

WZ290101142

WZ00085,000030E -19-05APR05-10/19

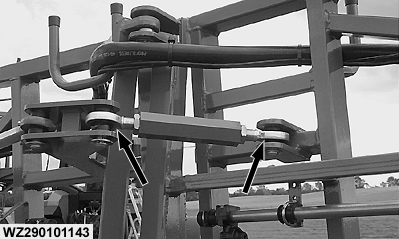

Adjustable Top Link Between First And Second Boom Segment (I)

Clean the lubricating nipples (arrow) of the spray boom regularly and grease well.

WZ290101143

WZ00085,000030E -19-05APR05-11/19

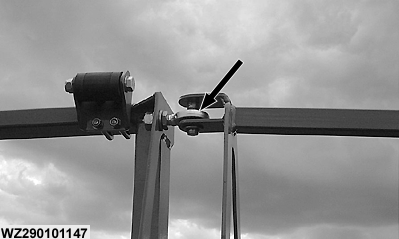

Upper Pivot of Boom Breakaway Segment (J)

Clean the lubricating nipples (arrow) of the spray boom regularly and grease well.

WZ290101147

WZ00085,000030E -19-05APR05-12/19

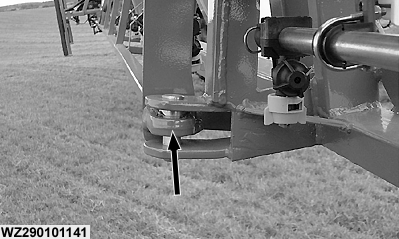

Lower Pivot Between First And Second Boom Segment (K)

Clean the lubricating nipples (arrow) of the spray boom regularly and grease well.

WZ290101141

WZ00085,000030E -19-05APR05-13/19

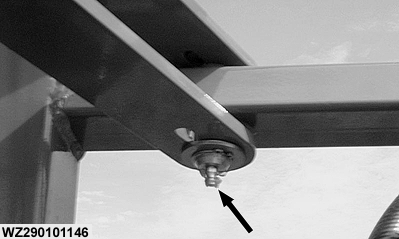

Folding Mechanism, Second Boom Segment Connection to First Boom Segment (L)

Clean the lubricating nipples (arrow) of the spray boom regularly and grease well.

WZ290101146

WZ00085,000030E -19-05APR05-14/19

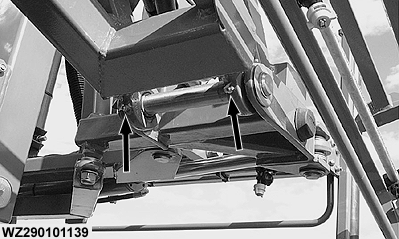

Lower Vertical Pivots of First Boom Segment (M)

Clean the lubricating nipples (arrow) of the spray boom regularly and grease well.

WZ290101139

WZ00085,000030E -19-05APR05-15/19

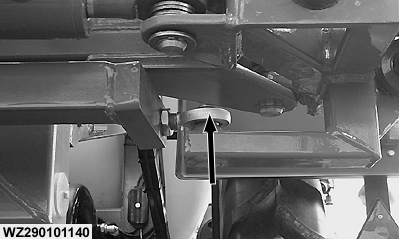

Pivots Between Connection Rod And First Boom Segment (N)

Clean the lubricating nipples (arrow) of the spray boom regularly and grease well.

WZ290101140

WZ00085,000030E -19-05APR05-16/19

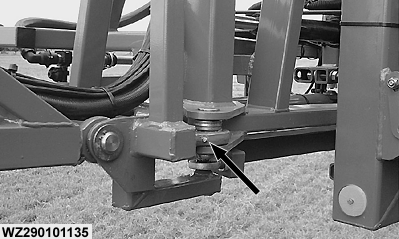

Lower Horizontal Pivot of First Boom Segment (O)

Clean the lubricating nipples (arrow) of the spray boom regularly and grease well.

WZ290101135

WZ00085,000030E -19-05APR05-17/19

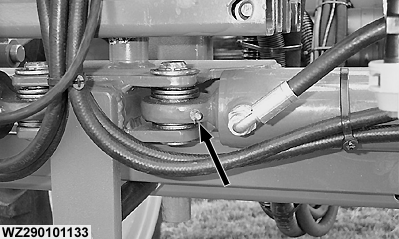

Boom Folding Cylinders of First Boom Segment, Piston Side (P)

Clean the lubricating nipples (arrow) of the spray boom regularly and grease well.

WZ290101133

WZ00085,000030E -19-05APR05-18/19

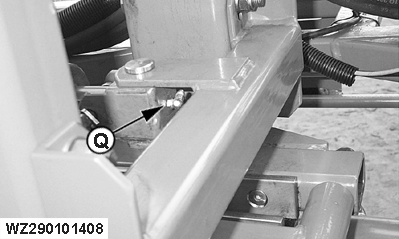

Pivot of Boom Tilt Hydraulic Cylinder (Q)

Clean the lubricating nipples (arrow) of the spray boom regularly and grease well.

WZ290101408

WZ00085,000030E -19-05APR05-19/19
