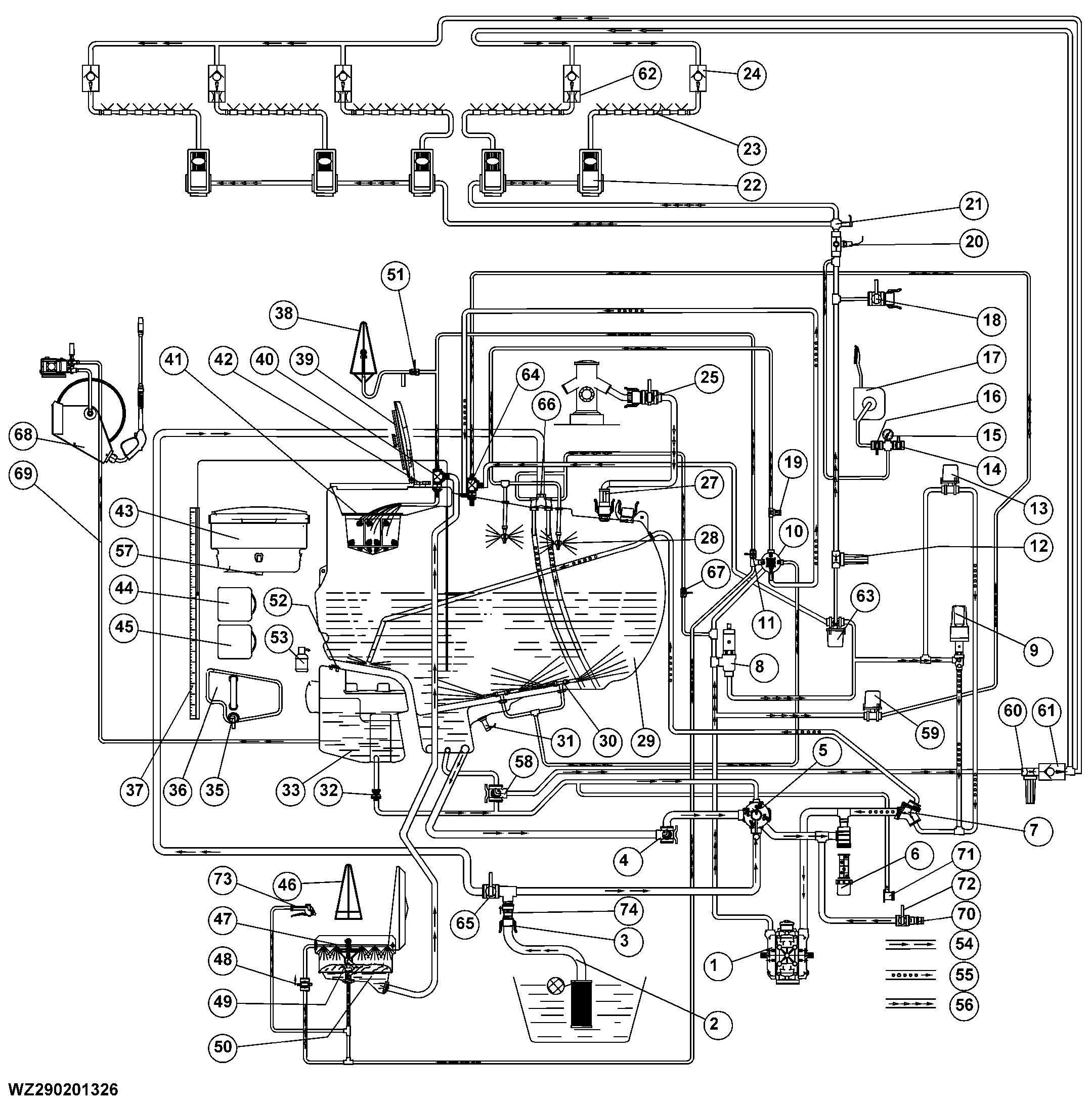

1-Piston diaphragm pump
2-Filling hose with strainer and float
3-Filling hose connection
4-Drain valve (solution tank)
5-Suction selection valve
6-Suction filter
7-Circulation valve
8-Primary pressure regulator
9-Electric spray pressure regulator
10-Pressure selection valve
11-Shut-off valve (injector chemical inductor)
12-Pressure filter
13-Electrically operated master valve
14-Spray gun connection
15-Pressure gauge
16-Shut-off valve (brush with hose reel)
17-Brush with hose reel
18-Transfer valve with hose connection
19-Strainer (tank rinsing nozzles)
20-Flow sensor
21-Pressure sensor
22-Electric boom section valves
|
23-Spray line
24-Non return valve (spray line section)
25-Shut-off valve (external pump filling connection)
26-Not used
27-External pump filling connection
28-Rotating tank rinsing nozzles
29-Solution tank
30-Hydro injectors for agitation
31-Tank level sensor
32-Non return valve (rinse tank)
33-Rinse tank
34-Not used
35-Drain tap (hand wash tank)
36-Hand wash tank
37-Liquid level indicator (solution tank)
38-Rinsing head in filling opening with tenter
39-Hinged tank lid
40-Injector chemical inductor
41-Basket strainer
|
42-Tank vent
43-Spray chemical receptacle
44-Protective clothing locker (clean clothing)
45-Protective clothing locker (used clothing)
46-Tenter for chemical inductor
47-Ring line (chemical inductor)
48-Shut-off valve (ring line chemical inductor)
49-Rinsing head (chemical inductor)
50-Chemical inductor
51-Shut-off valve (rinsing head in filling opening)
52-Tank lid (rinse tank)
53-Soap pump dispenser
54-Suction line
55-Return line
56-Pressure line
57-Drain valve (spray chemical receptacle)
58-Suction valve (vacuum recirculation system)
59-Electric ball valve (injector VRS)
|
60-Recirculation filter VRS
61-Central non return valve VRS
62-Restrictors VRS recirculation
63-Electric valve (recirculation line)
64-Injector for VRS
65-Shut-off valve (suction line filling injector)
66-Filling injector
67-Shut-off valve (filling injector)
68-High pressure cleaner
69-Suction line, high pressure cleaner
70-Fill connection for closed chemical filling system (BASF Ecomatic)
71-Rinse connection for closed chemical filling system
72-Shut-off valve for closed chemical filling system
73-Spray gun chemical inductor
74-Non return check valve for filling
|
