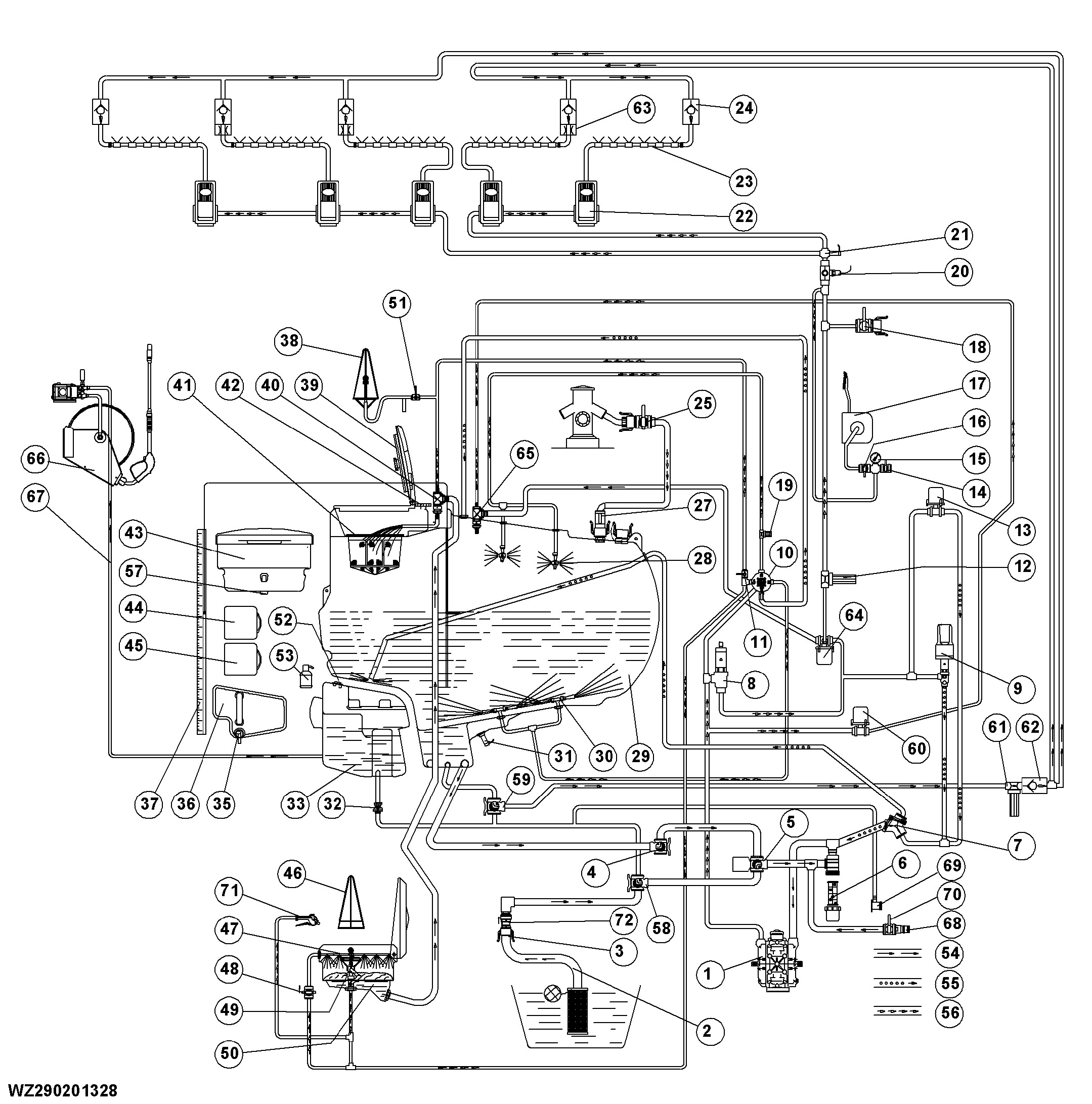

1-Piston diaphragm pump
2-Filling hose with strainer and float
3-Filling hose connection
4-Drain valve (solution tank)
5-Electric valve for automatic tank filling
6-Suction filter
7-Circulation valve
8-Primary pressure regulator
9-Electric spray pressure regulator
10-Pressure selection valve
11-Shut-off valve (injector chemical inductor)
12-Pressure filter
13-Electrically operated master valve
14-Spray gun connection
15-Pressure gauge
16-Shut-off valve (brush with hose reel)
17-Brush with hose reel
18-Transfer valve with hose connection
19-Strainer (tank rinsing nozzles)
20-Flow sensor
|
21-Pressure sensor
22-Electric boom section valves
23-Spray line
24-Non return valve (spray line section)
25-Shut-off valve (external pump filling connection)
26-Not used
27-External pump filling connection
28-Rotating tank rinsing nozzles
29-Solution tank
30-Hydro injectors for agitation
31-Tank level sensor
32-Non return valve (rinse tank)
33-Rinse tank
34-Not used
35-Drain tap (hand wash tank)
36-Hand wash tank
37-Liquid level indicator (solution tank)
38-Rinsing head in filling opening with tenter
|
39-Hinged tank lid
40-Injector chemical inductor
41-Basket strainer
42-Tank vent
43-Spray chemical receptacle
44-Protective clothing locker (clean clothing)
45-Protective clothing locker (used clothing)
46-Tenter for chemical inductor
47-Ring line (chemical inductor)
48-Shut-off valve (ring line chemical inductor)
49-Rinsing head (chemical inductor)
50-Chemical inductor
51-Shut-off valve (rinsing head in filling opening)
52-Tank lid (rinse tank)
53-Soap pump dispenser
54-Suction line
55-Return line
56-Pressure line
57-Drain valve (spray chemical receptacle)
58-Suction valve (filling / rinsing)
|
59-Suction valve (vacuum recirculation system)
60-Electric ball valve (injector VRS)
61-Recirculation filter VRS
62-Central non return valve VRS
63-Restrictors VRS
64-Electric valve (recirculation line)
65-Injector for VRS
66-High pressure cleaner
67-Suction line, high pressure cleaner
68-Fill connection for closed chemical filling system (BASF Ecomatic)
69-Rinse connection for closed chemical filling system
70-Shut-off valve for closed chemical filling system
71-Spray gun chemical inductor
72-Non return check valve for filling
|
