Triple Folding Spray Boom Lubricating Nipple Summary

WZ290201049

WZ00085,0000327 -19-12APR05-1/25

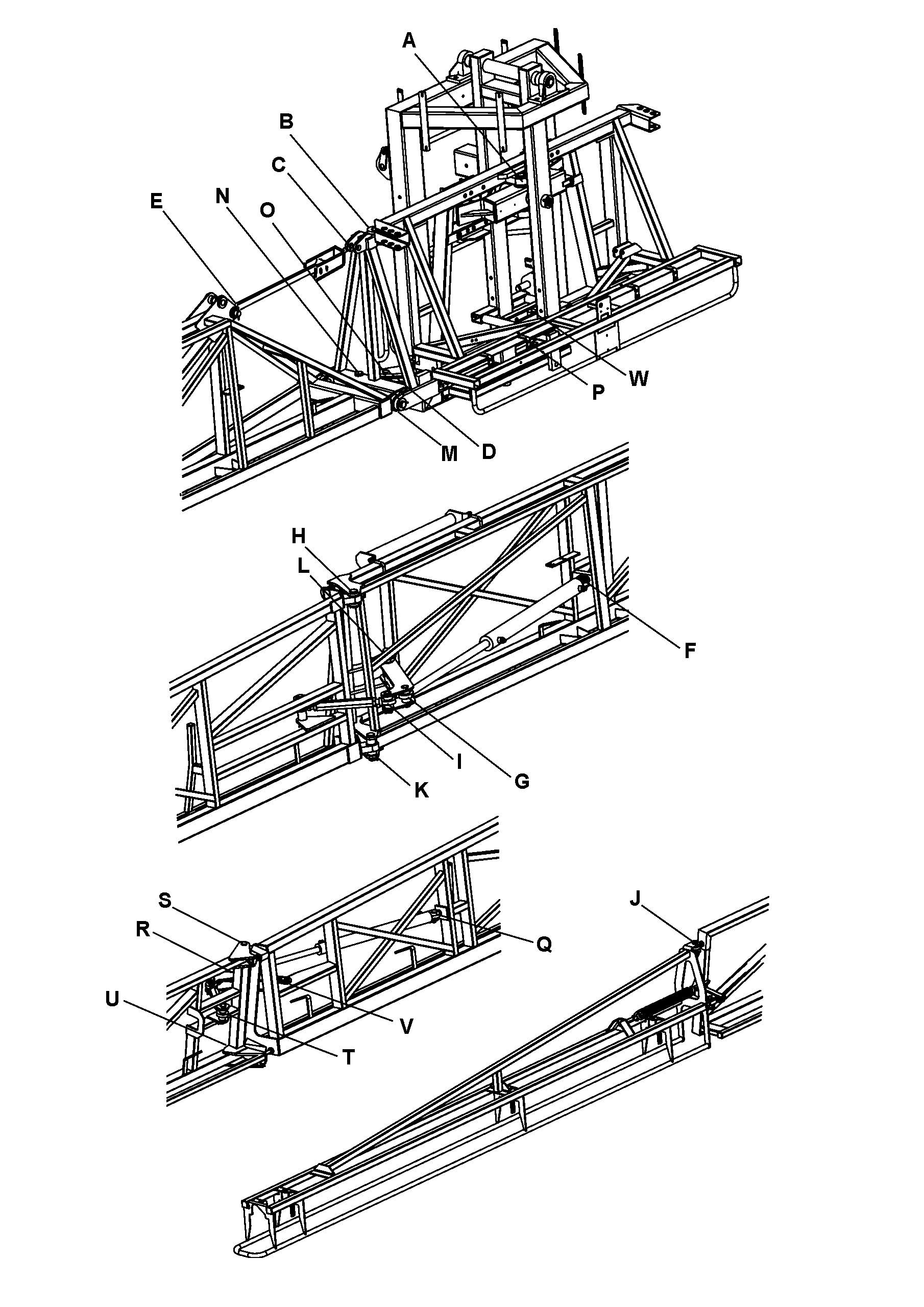

A-Spray Boom Lubricating Points
B-Upper Horizontal Pivot of First Boom Segment
C-Adjustable Upper Connection Between Centre Frame And First Boom Segment
D-Boom Folding Cylinders of First Boom Segment, Piston Rod Side
E-Fixed Rod Connection Between Centre Frame And First Boom Segment
F-Boom Folding Cylinders of Second Boom Segment, Piston Side


G-Boom Folding Cylinders of Second Boom Segment, Piston Rod Side
H-Upper Pivot Between First And Second Boom Segment
I-Adjustable Top Link Between First And Second Boom Segment
J-Upper Pivot of Boom Breakaway Segment
K-Lower Pivot Between First And Second Boom Segment
L-Folding Mechanism, Second Boom Segment Connection to First Boom Segment


M-Lower Vertical Pivots of First Boom Segment
N-Pivots Between Connection Rod And First Boom Segment
O-Lower Horizontal Pivot of First Boom Segment
P-Boom Folding Cylinders of First Boom Segment, Piston Side
Q-Boom Folding Cylinders of Third Boom Segment, Piston Side
R-Boom Folding Cylinders of Third Boom Segment, Piston Rod Side


S-Upper Pivot Between Second And Third Boom Segment
T-Adjustable Top Link Between Second And Third Boom Segment
U-Lower Pivot Between Second And Third Boom Segment
V-Folding Mechanism, Third Boom Segment Connection to Second Boom Segment
W-Pivot of Boom Tilt Hydraulic Cylinder

Grease lubricating nipples

The lubricating nipples must be lubricated regularly with JD MULTILUBER GREASE or John Deere SD POLYUREA GREASE.

WZ00085,0000327 -19-12APR05-2/25

Anti yaw system pivot points (A)

Clean the pin joints on the top and bottom of the anti-yaw system regularly and grease the lubricating nipples (arrow) well.

WZ290101401

WZ00085,0000327 -19-12APR05-3/25

Upper Horizontal Pivot of First Boom Segment (B)

Clean the lubricating nipples (arrow) of the spray boom regularly and grease well.

WZ290101136

WZ00085,0000327 -19-12APR05-4/25

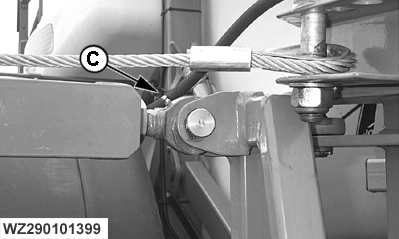

Adjustable Upper Connection Between Centre Frame And First Boom Segment (C)

Clean the lubricating nipples (arrow) of the spray boom regularly and grease well.

WZ290101399

WZ00085,0000327 -19-12APR05-5/25

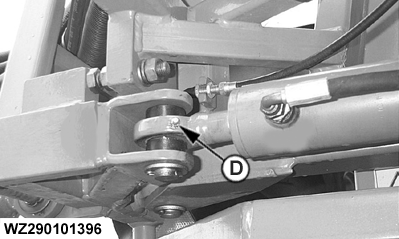

Boom Folding Cylinders of First Boom Segment, Piston Rod Side (D)

Clean the lubricating nipples (arrow) of the spray boom regularly and grease well.

WZ290101396

WZ00085,0000327 -19-12APR05-6/25

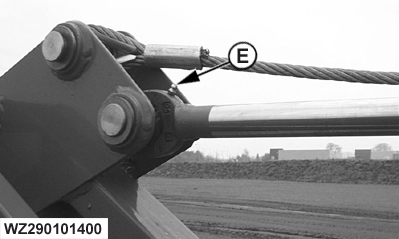

Fixed Rod Connection Between Centre Frame And First Boom Segment (E)

Clean the lubricating nipples (arrow) of the spray boom regularly and grease well.

WZ290101400

WZ00085,0000327 -19-12APR05-7/25

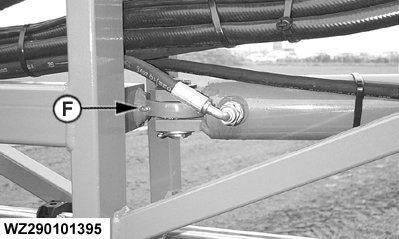

Boom Folding Cylinders of Second Boom Segment, Piston Side (F)

Clean the lubricating nipples (arrow) of the spray boom regularly and grease well.

WZ290101395

WZ00085,0000327 -19-12APR05-8/25

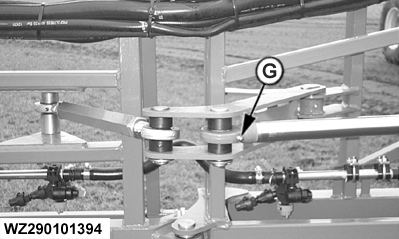

Boom Folding Cylinders of Second Boom Segment, Piston Rod Side (G)

Clean the lubricating nipples (arrow) of the spray boom regularly and grease well.

WZ290101394

WZ00085,0000327 -19-12APR05-9/25

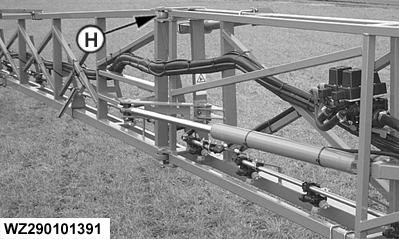

Upper Pivot Between First And Second Boom Segment (H)

Clean the lubricating nipples (arrow) of the spray boom regularly and grease well.

WZ290101391

WZ00085,0000327 -19-12APR05-10/25

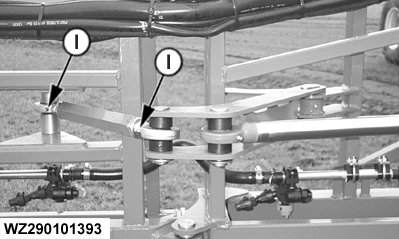

Adjustable Top Link Between First And Second Boom Segment (I)

Clean the lubricating nipples (arrow) of the spray boom regularly and grease well.

WZ290101393

WZ00085,0000327 -19-12APR05-11/25

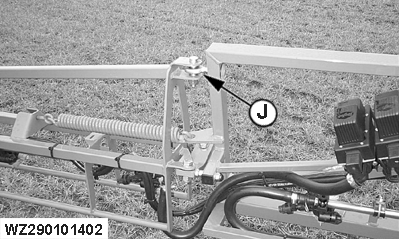

Upper Pivot of Boom Breakaway Segment (J)

Clean the lubricating nipples (arrow) of the spray boom regularly and grease well.

WZ290101402

WZ00085,0000327 -19-12APR05-12/25

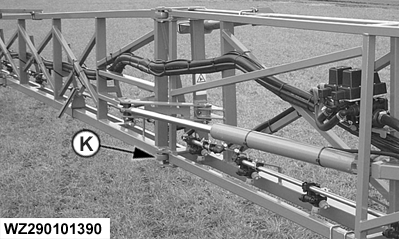

Lower Pivot Between First And Second Boom Segment (K)

Clean the lubricating nipples (arrow) of the spray boom regularly and grease well.

WZ290101390

WZ00085,0000327 -19-12APR05-13/25

Folding Mechanism, Second Boom Segment Connection to First Boom Segment (L)

Clean the lubricating nipples (arrow) of the spray boom regularly and grease well.

WZ290101392

WZ00085,0000327 -19-12APR05-14/25

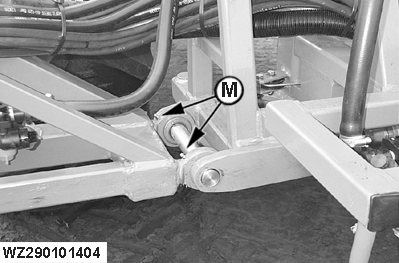

Lower Vertical Pivots of First Boom Segment (M)

Clean the lubricating nipples (arrow) of the spray boom regularly and grease well.

WZ290101404

WZ00085,0000327 -19-12APR05-15/25

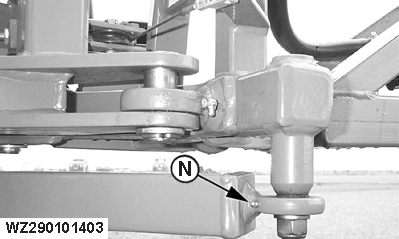

Pivots Between Connection Rod And First Boom Segment (N)

Clean the lubricating nipples (arrow) of the spray boom regularly and grease well.

WZ290101403

WZ00085,0000327 -19-12APR05-16/25

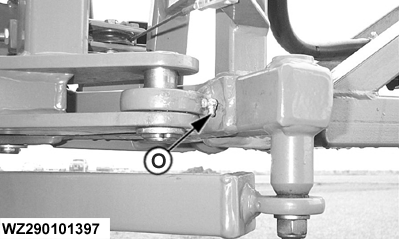

Lower Horizontal Pivot of First Boom Segment (O)

Clean the lubricating nipples (arrow) of the spray boom regularly and grease well.

WZ290101397

WZ00085,0000327 -19-12APR05-17/25

Boom Folding Cylinders of First Boom Segment, Piston Side (P)

Clean the lubricating nipples (arrow) of the spray boom regularly and grease well.

WZ290101133

WZ00085,0000327 -19-12APR05-18/25

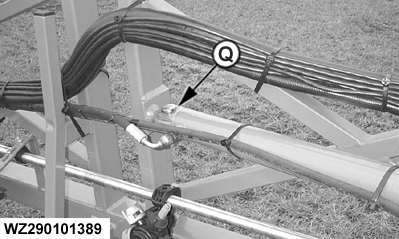

Boom Folding Cylinders of Third Boom Segment, Piston Side (Q)

Clean the lubricating nipples (arrow) of the spray boom regularly and grease well.

WZ290101389

WZ00085,0000327 -19-12APR05-19/25

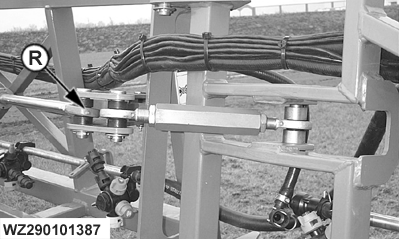

Boom Folding Cylinders of Third Boom Segment, Piston Rod Side (R)

Clean the lubricating nipples (arrow) of the spray boom regularly and grease well.

WZ290101387

WZ00085,0000327 -19-12APR05-20/25

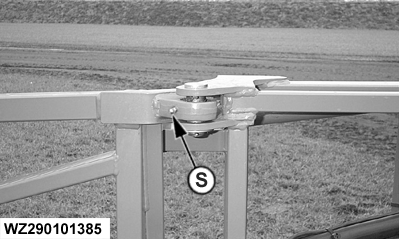

Upper Pivot Between Second And Third Boom Segment (S)

Clean the lubricating nipples (arrow) of the spray boom regularly and grease well.

WZ290101385

WZ00085,0000327 -19-12APR05-21/25

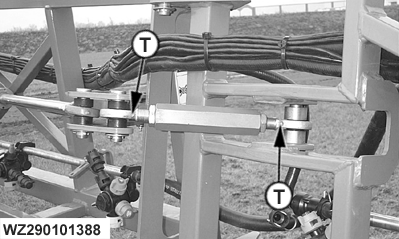

Adjustable Top Link Between Second And Third Boom Segment (T)

Clean the lubricating nipples (arrow) of the spray boom regularly and grease well.

WZ290101388

WZ00085,0000327 -19-12APR05-22/25

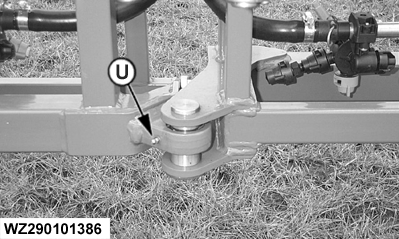

Lower Pivot Between Second And Third Boom Segment (U)

Clean the lubricating nipples (arrow) of the spray boom regularly and grease well.

WZ290101386

WZ00085,0000327 -19-12APR05-23/25

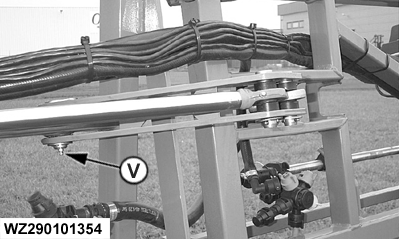

Folding Mechanism, Third Boom Segment Connection to Second Boom Segment (V)

Clean the lubricating nipples (arrow) of the spray boom regularly and grease well.

WZ290101384

WZ00085,0000327 -19-12APR05-24/25

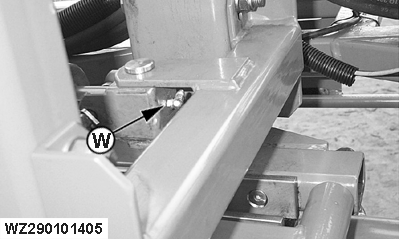

Pivot of Boom Tilt Hydraulic Cylinder (W)

Clean the lubricating nipples (arrow) of the spray boom regularly and grease well.

WZ290101405
