Gear Box

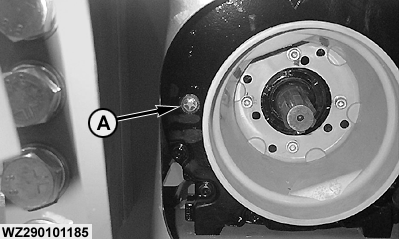

Check the oil in the gear box. There is sufficient oil in the reservoir when the oil level lies between the minimum and maximum indices (A). If necessary, top up with gear John Deere GL-5 Gear Lubricant SAE85W-90 or equivalent to the required level.


A-Level gauge

WZ290101185

WZ00085,0000352 -19-13JUN05-1/1
