Dimensions and Weights

Specifications

John Deere Trailed Sprayers 832 TF 840 TF 832i TF 840i TF
Nominal tank volume (l) 3200 4000 3200 4000
Maximum tank volume (l) (greater or equal to values shown) >3360 >4200 >3360 >4200
Rinse tank (l) 400
Hand wash tank (l) 20
Standard pump AR-280
Optional pump - - - -
Spray boom width (fully unfolded) (m)
- double folding boom 18-30 m 18-30 m 18-30 m 18-30 m
- triple folding boom 24-36 m 24-39 m 24-36 m 24-39 m
Track width
- 150/180 cm, fixed axle X X X X
- 150/200 cm, sliding axle (narrow) X X X X
- 172/225 cm, sliding axle (wide) X X X X
Ground clearance below axle (cm) 75 75 75 75
Boom Height (cm) 50-240 50-240 50-240 50-240



NOTE: Dimensions are approximate and based on sprayers with 270/95R48 tires.

Weights

  832 840
Total weight (kg) empty 3400 3460
Total weight (kg) full 7020 7880



NOTE: All weights are approximate with base equipment, 24 m boom and filled with water.

WZ00085,0000366 -19-07SEP06-1/3

WZ290201019

WZ00085,0000366 -19-07SEP06-2/3

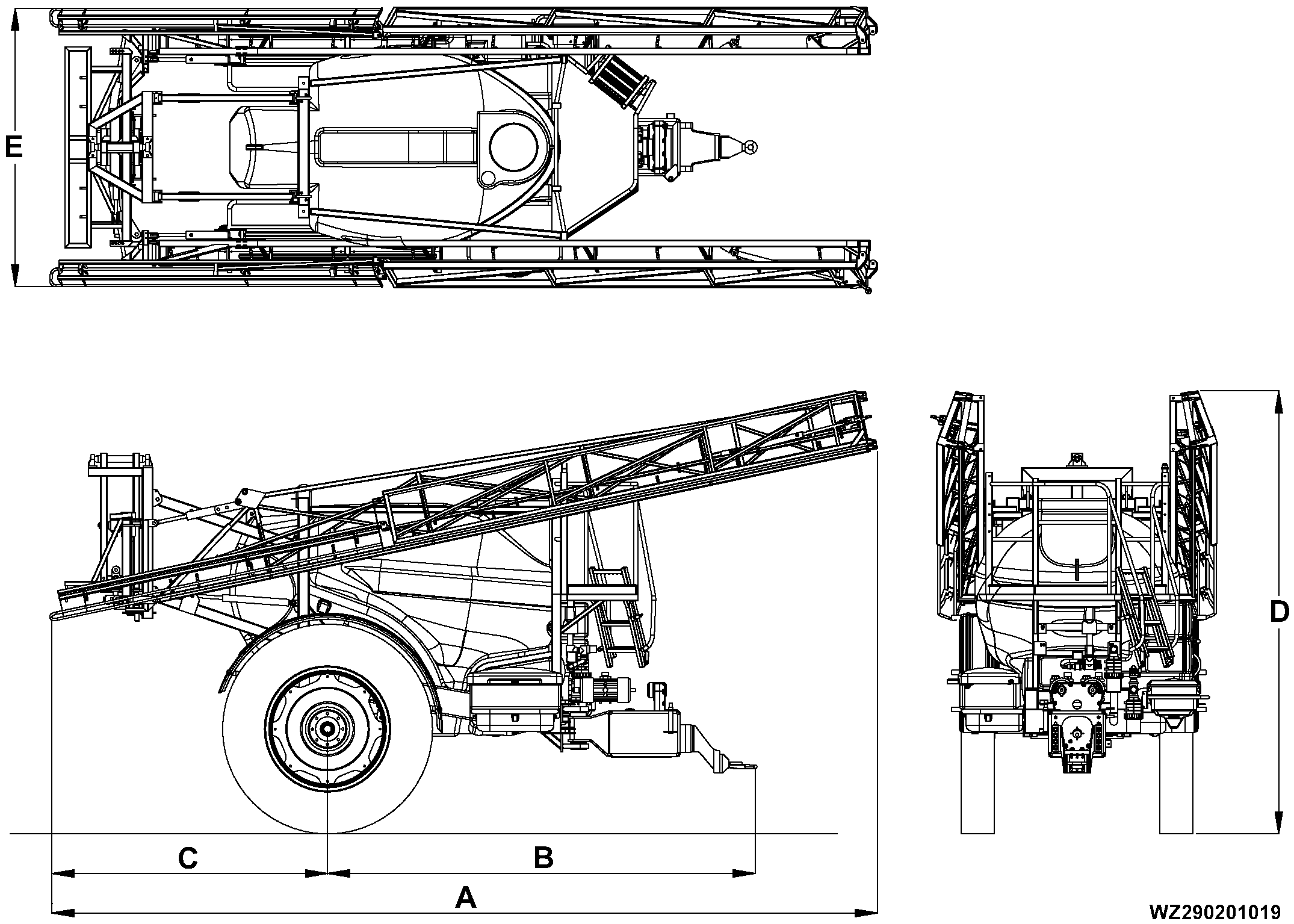

Dimensions

Base sprayer Spray boom
(max./min. working width)		 A
(cm)		 B
(cm)		 C
(cm)		 D
(cm)		 E
(cm)
832/840 18/12 m 583 387 237 364 255
832/840 20/12 m 583 387 237 364 255
832/840 21/12 m 583 387 237 364 255
832/840 24/12 m 595 387 250 364 255
832/840 24/15 m 730 387 237 390 255
832/840 27/15 m 730 387 237 390 255
832/840 28/14 m 694 387 250 382 255
832/840 30/15 m 743 387 250 390 255
832/840 24/18 m 465 387 235 365 300
832/840 27/18 m 535 387 235 365 300
832/840 27/21 m 540 387 310 365 300
832/840 28/20 m 492 387 262 365 300
832/840 30/21 m 540 387 310 365 300
832/840 32/21 m 562 387 310 365 300
832/840 33/21 m 610 387 310 365 300
832/840 36/24 m 622 387 262 365 300
832/840 39/27 m 680 387 235 390 300



NOTE: Dimensions depend on tire size and track width.

All measurements are with 270/95R48 tires and 1.80 m track.
