T-Splitter Cables

A T-splitter cable must be used to enable communication between the EHC-2 control box and the GreenStar system. Three different T-splitter cables are available for different (GreenStar-ready) tractors.

See also "Electrical Connection" and "Connection of socket to the tractor" in the section "Preparing the Tractor".

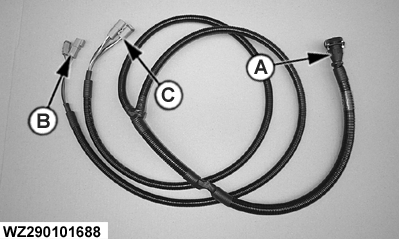

A-Connector for EHC-2 control box
B-Power supply
C-Connector for CAN Bus

WZ290101687
WZ290101700
WZ290101688

WZ00232,000001C -19-30AUG06-1/1
