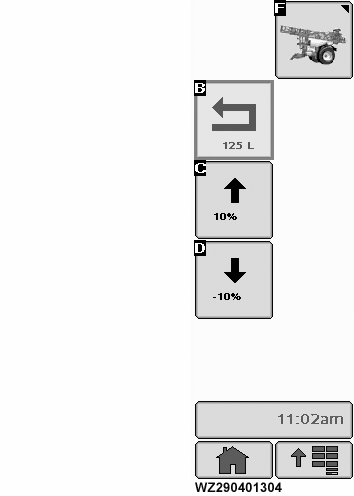

To get "Boost Mode" from sprayer main page select softkey B. The following softkeys will appear:
Softkey B
"Return": if softkey B is pressed, the target application rate is reset to the original target rate (100%) as set in "Job Settings", screen returns to previous page.
Softkey C
"Boost Percentage +10%": shows the boost percentage which can be changed in +10% steps. Each time the key is pressed, the target rate is increased by +10%.
Softkey D
"Boost Percentage -10%": shows the boost percentage which can be changed in -10% steps. Each time the key is pressed, the target rate is decreased by -10%.
Note that if the machine is set to manual, the softkey B for "Boost Mode" will not be visible.
|
|
