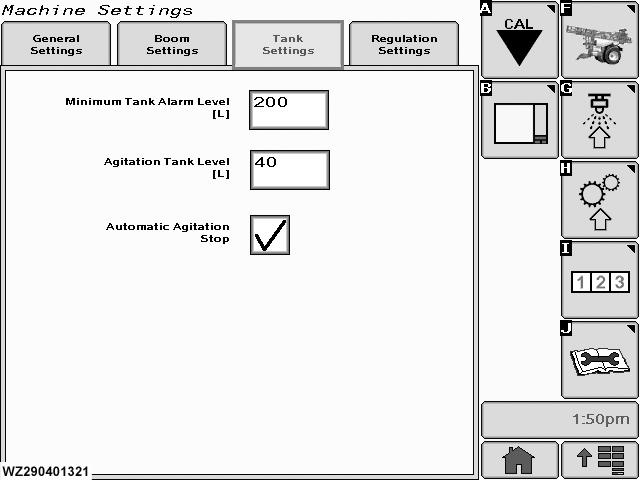

"Tank Settings" tab can be found in "Machine Settings".
Minimum Tank Alarm Level
enter the required tank level (in liters) at which a "Tank Almost Empty" alarm must be generated during spraying.
Agitation Tank Level
if required, a tank level value can be entered below which an agitation caution message "Stop Tank Agitation" is given to the operator. The operator can switch off the agitation
|
to prevent foaming and spray the tank completely empty. If the sprayer is fitted with an electric shut-off valve for agitation, the tank agitation is automatically switched off below this level.
Automatic Agitation Stop
check box enables or disables the function, if the sprayer is fitted with an electric shut-off valve for the tank agitation. When active, a caution message "Tank Agitation Stopped" will be displayed on the screen, when the agitation is switched off automatically.
|
