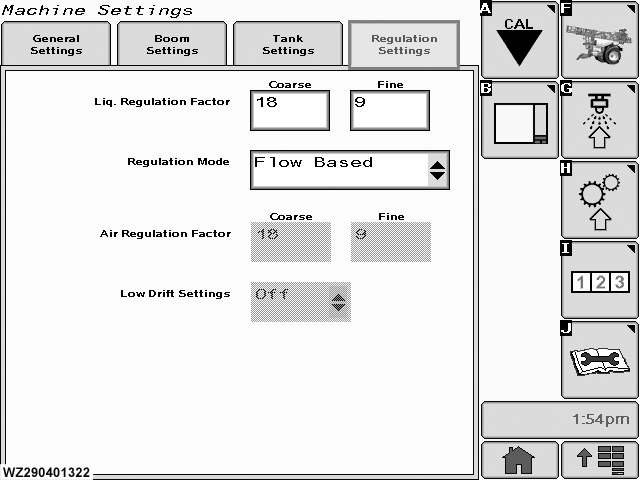

"Regulation Settings" tab can be found in "Machine Settings".
Liq. Regulation Factor- Coarse & Fine
these factors determine the regulation speed of the pressure regulating valve for large deviations between the actual and target application rate (digits before decimal point) and for small deviations (digit after decimal point).
Regulation Mode
if the sprayer is fitted with both a flow sensor and a pressure sensor, the type of regulation can be selected here. With flow based regulation, the controller will take the input from the flow sensor, and with pressure based
|
regulation the controller will take the input from pressure sensor.
Air Regulation Factor - Coarse & Fine
these factors determine the regulation speed of the air pressure regulator for a large deviation between the actual and target air pressure (digits before decimal point) and for small deviations (digits after decimal point). This only appears for TwinFluid™ sprayers
Low Drift Settings
to comply with the local legal regulations, specific low drift settings can be entered when spraying along the edge of the field (TwinFluid™ sprayers only). See "Low Drift Setting" in "Operation of the Machine".
|
