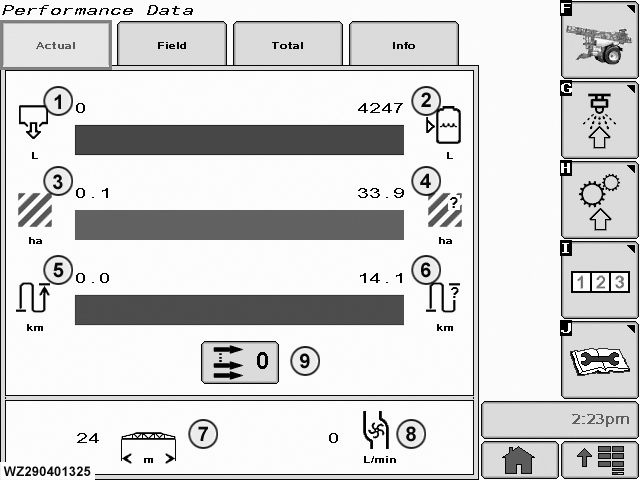

1-Sprayed volume
2-Remaining volume
3-Sprayed area

4-Remaining area
5-Sprayed distance

6-Remaining distance
7-Working width (actual)

8-Flow rate (actual)
9-Resets fields to zero

"Actual" performance data is found by selecting softkey I from the "Menu" field. It is the first tab to appear after activating the softkey.

The horizontal bar charts represent an overview of performance with regard to "What have I done" and "What can I do". The bars will recede to the left as spray work is carried out, and the totals will update showing the machine performance.

Item (7) shows your operating working (section spraying) width. This will change dependent on which sections are open.

(8) shows the current flow rate in l/min.

WZ00232,0000034 -19-02OCT06-1/1
