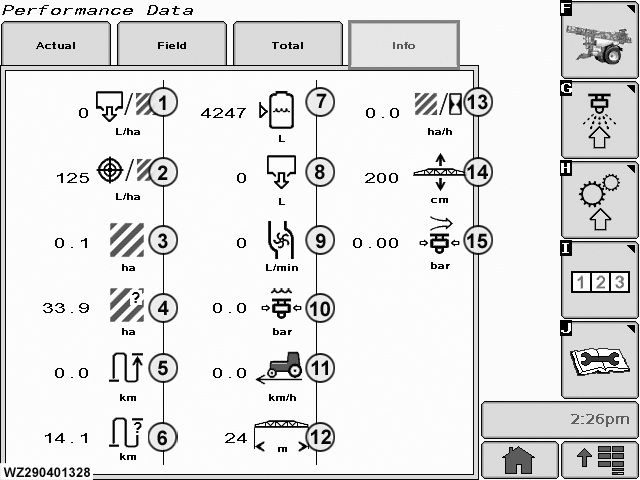

"Info" data can be found by selecting the (Info) tab in "Performance Data" (softkey I). This screen shows all actual data.
1
Applied rate (l/ha).
2
Target rate (l/ha).
3
Sprayed area (ha).
4
Remaining area (ha).
5
Sprayed distance (km).
6
Remaining distance (km).
|
7
Actual tank volume (l).
8
Sprayed volume (l).
9
Actual flow rate (l).
10
Liquid pressure (bar).
11
Current speed (km/h).
12
Working width (m).
13
Current performance (ha/h).
14
Boom height (cm) BoomTrac only.
15
Air pressure (bar) TwinFluid only.
|
