Sensor Status

WZ290401331

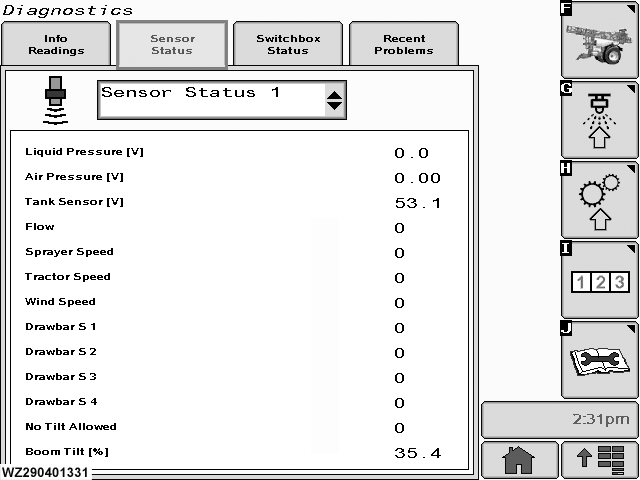

Diagnostic - Sensor Status 1

"Sensor Status" can be found by selecting the (Sensor Status) tab in "Diagnostics" (softkey J).

Via a drop down list you can select between two sensor status pages. In these pages the current status of all sensors fitted on the sprayer can be monitored.

WZ00232,000003A -19-10OCT06-1/2

WZ290401392

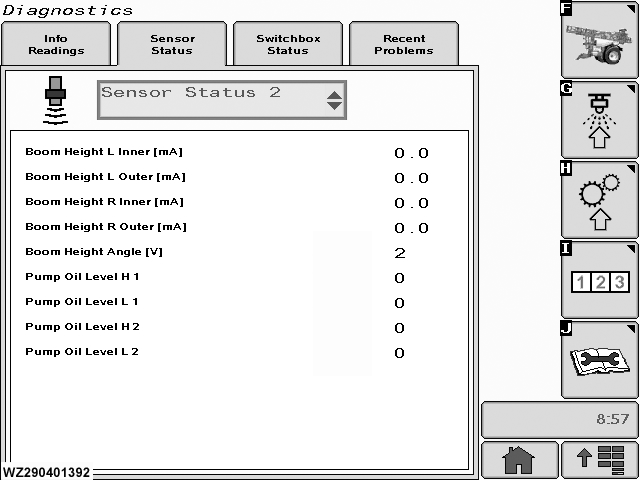

Diagnostic - Sensor Status 2

Sensor Status 2

WZ00232,000003A -19-10OCT06-2/2
