Recent Problems

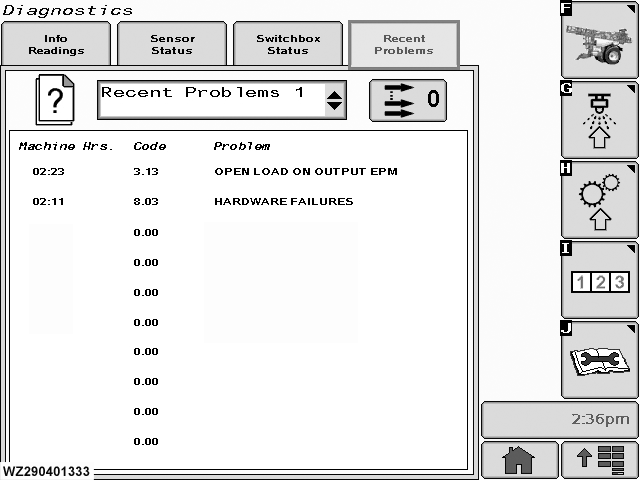

"Recent Problems" can be found by selecting the (Recent Problems) tab in "Diagnostics" (softkey J). Alarm Codes the Alarm Codes are stored on one or more pages. Clear Alarm Codes to clear codes from the screen, select the "Reset" button located under "Recent Problems" tab. A new alarm is only stored if it was not previously stored during the last 12 minutes. This prevents filling

the memory with the same alarm massage when it keeps repeating. For each stored alarm code, the total time is also stored (time alarm occurred). The most recent alarm codes are shown first. If they do not fit on the first page an extra page is added. All trouble codes can be found in the "Fault and Trouble Codes" List section.

WZ00232,000003C -19-03OCT06-1/1
