Power Supply

IMPORTANT: Connect the plug to a 12 V system only.

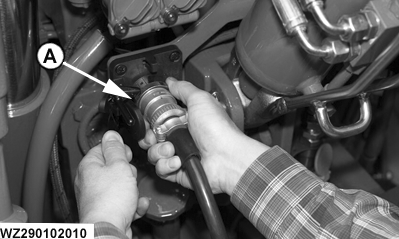

Power is supplied to the machine through the 9-pole ISO 11783 plug (A) and the supply cable, which feeds current to all components via the receiver box. The 9-pole socket must be fitted to the tractor (if not available).


A-9-pole plug

WZ290102010

WZ00232,000004A -19-16OCT06-1/1
