Install Wiring Harness on Tractor

IMPORTANT: The electric power supply must be connected in accordance with the wiring diagram and as described in this section.

Verify, before connecting the sprayer, Multi-Function Control lever (MFC) and GreenStar™ display, that the power supply is connected and functions as described.

Failure to follow these instructions can cause severe damage to the electrical system of the machine.

Always keep the battery well-charged (12 V minimum, 14.4 V maximum) and ensure the alternator functions properly.


CAN-Bus Wiring Harness

WZ290700312
WZ290700312-UN-05NOV14

1 - Time Relay (not used)

2 - Main Relay

3 - Battery

4 - Fuse (60A)

5 - Fuse (30A)

6 - Ground Wire (brown)

7 - Power Harness

8 - Multi-Function Control Lever (MFC)

9 - Connector (14 pole)

10 - GreenStar™ terminal

11 - Gray/Black Plug (10-pole), GreenStar™ Terminal

12 - Gray Plug, Mobile Processor

13 - Socket, Performance Display 1 (not used)

14 - Plug, Performance Display 2 (not used)

15 - Quick Out (for StarFire™ Receiver or ITC)

16 - Terminator

17 - Plug (3-pole Cobo)

18 - Socket (3-pole Cobo)

19 - System Harness

20 - Diagnostic Connector (not used)

21 - Implement Switch (not used)

22 - Plug (2-pole)

23 - Socket (2-pole)

24 - Plug (4-pole)

25 - Socket (4-pole)

26 - T-splitter cable

27 - Plug (2-pole)

28 - Socket (2-pole)

29 - Plug (4-pole)

30 - Socket (4-pole)

31 - Implement Switch (not used)

32 - Implement Switch (not used)

33 - Plug (4-pole, for T-Splitter at GreenStar™-ready tractor)

34 - Plug (2-pole, for T- Splitter at GreenStar™-ready tractor)

35 - Socket (9-pole Deutsch)

After verifying that the tractor power supply is operating correctly, the CAN-Bus wiring harness has to be installed in the tractor cab as shown in the drawing. This wiring harness is pre-assembled as far as possible. After the wiring harness is installed in the tractor cab, the remaining cables have to be connected to the tractor battery and the 9-pole ISO plug together with all separate plugs as follows:

  • Install the pre-assembled main relays (2) on the tractor
  • Connect the brown ground wires (6) to the negative pole (-) of the battery (3)
  • Connect the white +12V-wires with 60A fuse (4) and 30A fuse (5) to the positive pole (+) of the tractor battery (3)
  • Mount socket (35) on the back of the tractor and connect the cables as follows in the socket:
    • Brown (Br/ground /60A) to position 1
    • Brown (Br/ground/25A) to position 2
    • White (Wt/+12V/60A) to position 3
    • White (Wt/+12V/25A) to position 4
  • Connect 2-pole socket (28) from the Power harness (7) to 2-pole plug (27) from the T-splitter cable (26)
  • Connect 2-pole plug (34) to socket (35)
  • Connect 4-pole plug (33) to socket (35)
  • Mount 14-pole socket (9) in the tractor cab near the position where the Multi-Function Control lever (MFC) (8) has to be installed later
  • Connect 2-pole socket (23) from the T-splitter (26) to 2-pole plug (22) from the System harness (19)
  • Connect 4-pole socket (25) from the T-splitter (26) to 4-pole plug (24) from the System harness (19)
  • Black/gray 10-pole plug (11) is used to connect the GreenStar™ display (10)
  • Gray 10-pole plug (12) is used to connect the mobile processor (not available with GreenStar™ displays)
  • Terminator (16) indicates the end of this Can-Bus cable
  • 2-pole plugs (21, 31 and 32) are not used as is the remaining brown wire and diagnostic connector (20) from the system harness.
  • Connect 3-pole (Cobo) plug (17) to the 3-pole socket (18) in the tractor. See also Power Supply in this section.
  • Connect 4-pole socket (30) from power harness (7) to 4-pole plug (29) from T-Splitter (26).

The quick out connection (15) can be used for connecting the StarFire™ receiver/ITC via a spare cable to the Can line.


Plug (3-pole Cobo)

WZ290201437
WZ290201437-UN-13DEC10

A - +12 V when engine running (Not on engine start, see important)

IMPORTANT: The electric power supply must be connected according to the wiring diagram and explanation as written in this section. Not following these instructions can cause severe damage to the electrical system of the machine.

The correct connection of the plug (item (17) in Fitting Electrical Socket to Tractor) is important for the proper operation of GreenStar™ display.

  • Connect the red +12V-wire (15/30) via 25 Amp. fuse to the plus (+) terminal on the battery.
  • Connect the red +12V-wire (82) to the +12V power supply which is available when the machine is running. When the tractor is started, the 12V power supply must be switched off in order to turn off the system. There is a relay (NO) integrated on the printed circuit board.
  • Connect the black ground wire to the negative terminal (-) of the battery.

The relay ensures voltage feed (via cable 15/30). Once the vehicle is started, the relay temporarily switches off the system (via cable 82) in order to prevent voltage differences. This must be verified with a voltage tester, before mounting the plug into the socket.

Always keep the battery well-charged (12 V minimum, 14.4 V maximum) and ensure proper functioning of the alternator.


CAN-Bus Wiring Harness (preassembled box)

WZ290101470
WZ290101470-UN-15MAR02

A - Preassembled Box

A kit with a preassembled box for quick and easy installation is available, to connect the sprayer with ISOBUS to different tractors.

This kit contains the preassembled box and a power supply cable with 9-pole socket for connection to the battery of the tractor. Connect the power supply cable with socket to the battery first:

  • Mount the power socket with bracket at the rear of the tractor
  • Connect the red wire to the positive pole (+) of the battery
  • Connect the black wire to the negative pole (-) of the battery

The box (A) should be installed at the rear of the tractor. This box comprises the following connections:

  • 9-pole ISO-11783 CAN socket: The CAN bus cable with 9-pole plug coming from the sprayer should be connected to this socket.
  • Cable with 14-pole CAN bus socket: This cable should be connected to the cable with plug coming from the Multi-Function Control lever (MFC) in the tractor cab
  • Cable with two 10-pole connectors (black and gray): The black connector should be plugged into the GreenStar™ display socket in the tractor cab. The GreenStar display has a 26-pin socket and requires an adapter cable, please use AL175883 harness for a Mannheim tractor. The gray connector is used for connection to the mobile processor (not available with GreenStar™ displays).
  • Cable with 3-pole 12-Volt COBO plug: This connector needs to be plugged into the 3-pole COBO socket in the tractor (see also item Power Supply in this section).
  • Cable with 9-pole ISO-11783 connector (only used for power supply): This cable should be connected to the 9-pole power supply socket, previously installed at the rear of the tractor.
  • Cable with 12-pole Deutsch connector : This cable can be connected (if available) to the 12-pole socket from the StarFire™ receiver. If required, an extension cable WZ8816134 is available to operate the sprayer together with other AMS applications

T-Splitter Cable Used on GreenStar™ /ISO-Ready Tractors

WZ290101687
WZ290101687-UN-01MAR05

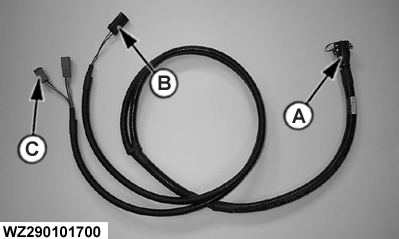

T-splitter 3-Pole Convenience Outlet - WZ8816143

WZ290101700
WZ290101700-UN-11APR05

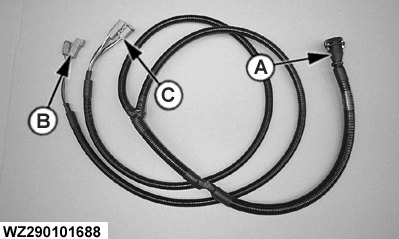

T-Splitter 3-Pole (ISOBUS) Power Connector - WZ8816142

WZ290101688
WZ290101688-UN-11APR05

T-Splitter 2-Pole Power Connector - WZ8816141

WZ290102473
WZ290102473-UN-05NOV14

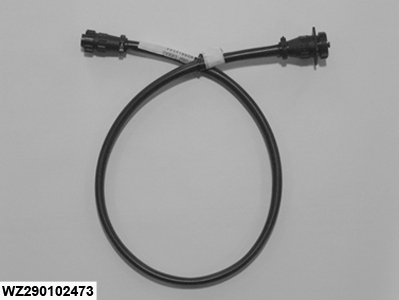

T-Splitter WZ8816144

A - 14-Pole Connector for MFC

B - Power Connector/Outlet

C - Plugs 4-Pole CAN Bus

The following T-Splitter cables part are available:

  • WZ8816141: T-Splitter cable (with 4-pole Deutsch CAN and 2-pole black Power connector)for John Deere 6010 / 7010 / 7020 / 7030 / 8010 / 8020 / 8030 Waterloo Series Tractors with GreenStar™ ready wiring harness. NOTE: Can be also used for all older or competitive tractors retrofitted with Generic GreenStar™ or Sprayer Harnesses (all 00 and 10 Series)
  • WZ8816142: T-Splitter cable (with 4-pole Deutsch CAN and 3-pole black Power connector) for John Deere 6020 / 6030 / 7030 Mannheim Series Tractors with ISO/GreenStar™ ready wiring harness.
  • WZ8816143: T-Splitter cable (with 4-pole Deutsch CAN and 3-pole black Convenience Outlet Power connector)  for John Deere 7020 / 7030 / 8020 / 8030 Series Tractors with ISO/ GreenStar™ ready wiring harness. NOTE: NOTE: The Convenience Outlet Power connector is not compatible with the COBO 12V Power connector.
  • WZ8816144: T-Splitter cable (with round 9-pole connector) for John Deere 6030 Premium / 7030 Premium / 6R / 7R / 8R / 9R Series Tractors with ISO/GreenStar™ ready wiring harness and ISO compliant competitive tractors.
  1. Connect both 4-pole plugs (C) of the T-splitter to the tractor 4-pole CAN Bus free sockets. If WZ8816144 is used connect the 9-pole connector to the tractor CAN-Bus in-cab connector. NOTE: The tractor cab side panel needs be removed to connect both 4-pole plugs (C) of the T-splitter to the 4-pole CAN Bus sockets.
  2. Connect the power outlet plug (B) to a power outlet available at the 6020 and 6030 series tractors (included in GreenStar™-ready wiring harness). For the 7020, 7030, 8020 and 8030 the power outlet plug (B) should be connected to the standard 3-pole power outlet plug inside the cab. NOTE: The tractor cab side panel needs be removed to connect the power connector of WZ8816141 and WZ8816142.
  3. Finally, connect the 14-pole connector (A) to the MFC.

T-Splitter Table GreenStar™/ISO-Ready Tractors

Tractor Model

Power Connector

T-Splitter Cable

Connector Legend

WZ8816141

WZ8816142

WZ8816143

WZ8816144



6010

2-Pole

D

Yes



7010

2-Pole

D

Yes



7020

2-Pole

D

Yes



7030

2-Pole

D

Yes



8010

2-Pole

D

Yes



8020

2-Pole

D

Yes



8030

2-Pole

D

Yes




6020

3-Pole ISOBUS

E



Yes



6030 Premium

3-Pole ISOBUS

E



Yes



7030 Premium

3-Pole ISOBUS

E



Yes




7020

3-Pole Convenience Outlet

F



Yes



7030

3-Pole Convenience Outlet

F



Yes



8020

3-Pole Convenience Outlet

F



Yes



8030

3-Pole Convenience Outlet

F



Yes




6030 Premium

9-Pole Outlet (Power & CAN)

G



Yes

7030 Premium

9-Pole Outlet (Power & CAN)

G



Yes

6R

9-Pole Outlet (Power & CAN)

G



Yes

7R

9-Pole Outlet (Power & CAN)

G



Yes

8R

9-Pole Outlet (Power & CAN)

G



Yes

9R

9-Pole Outlet (Power & CAN)

G



Yes

WZ290102474
WZ290102474-UN-10NOV14

T-Splitter Power Connectors

D - 2-Pole

E - 3-Pole ISOBUS

F - 3-Pole Convenience Outlet

G - 9-Pole Outlet (Power & CAN)


GreenStar is a trademark of Deere & Company

WZ00232,00005CF-19-20150528
