CLIMATRAK™Automatic Temperature Control

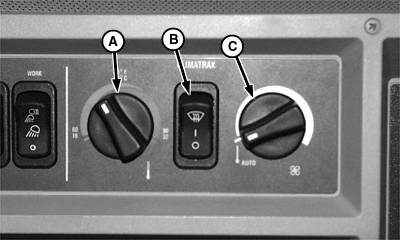

Mode selector switch (B) is used to preselect the mode in which the air-conditioning system operates.

With the mode selector switch in its bottom position, the air-conditioning system is off.

With the mode selector switch in its mid position, the system operates normally and regulates the temperature inside the cab by heating or cooling the recirculated air in relation to the position of dial (A).

In damp conditions, set the mode selector switch to its top position. This dries the recirculated air inside the cab, thus preventing the windows from misting up.

Dial (C) allows fan speed to be adjusted manually. At 'Auto' position, fan speed is regulated automatically; it is adjusted to suit the output of the air-conditioning system.

NOTE: With the mode selector switch in its top position, the recirculated air inside the cab is cooled and then later heated again. The refrigerant compressor operates all the time.

A-Temperature Selector Dial
B-Mode Select Switch
C-Fan Speed Control Dial

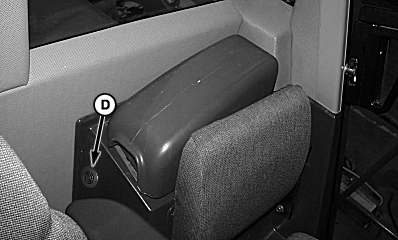

D-Sensor for Cab Interior Temperature
