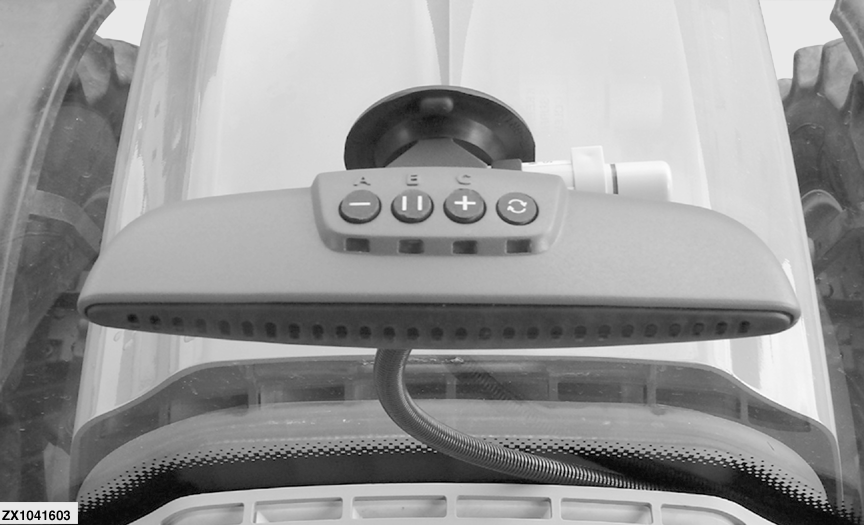

Lightbar Guidance System
|
|
GreenStar™ Lightbar system shows your position in field relative to track that you determine with your first pass through field. Using LEDs on your Lightbar display, you know which way to steer in order to keep your path parallel with your last. The Lightbar system can be used in a standalone configuration with just a StarFire receiver or can be |
used with a GreenStar™ display in conjunction with the GPS receiver (see "Lightbar System-Standalone Configuration" or "Lightbar System-Display Configuration" in this Section). |
