Lightbar System-Display Configuration

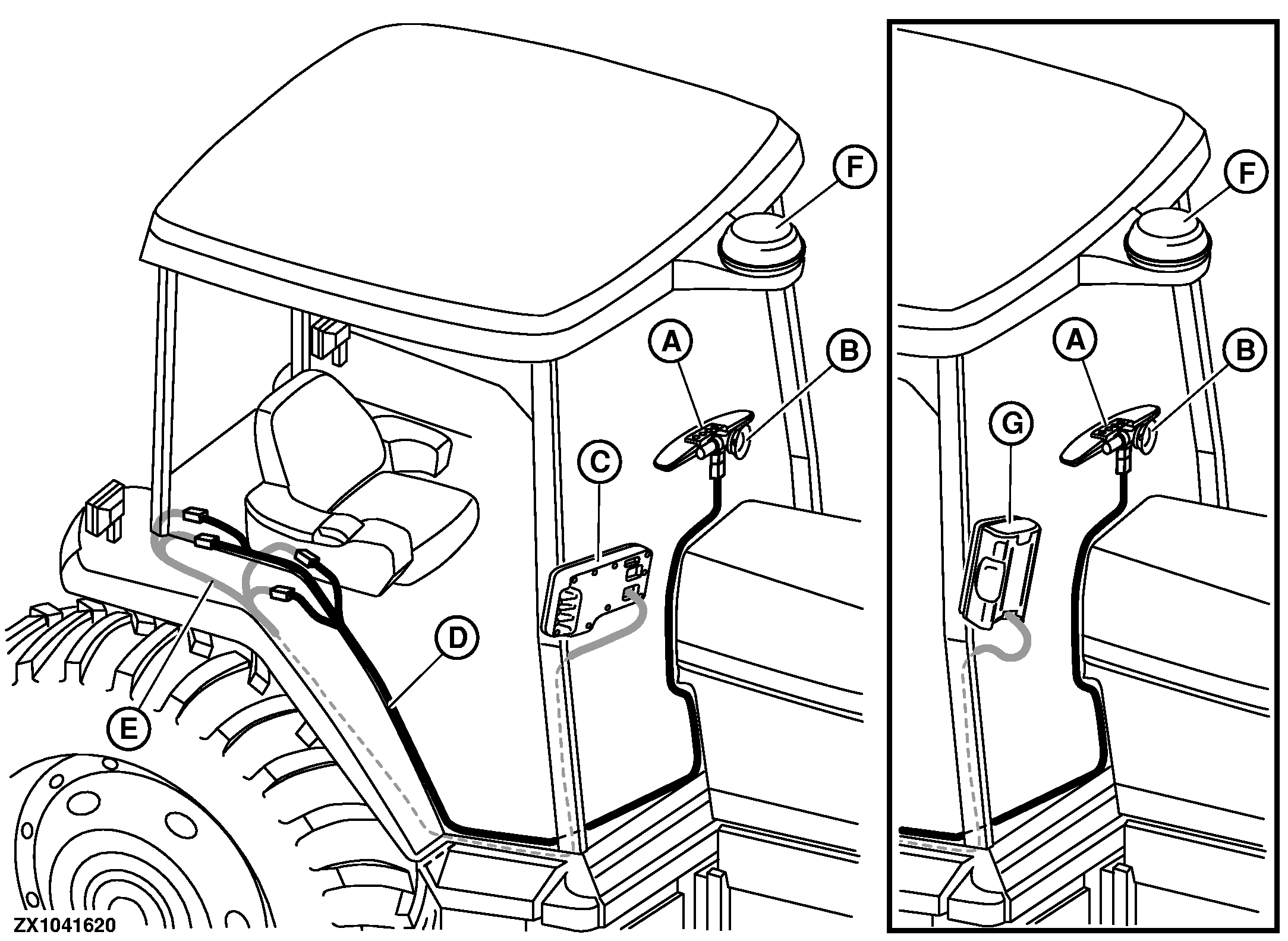

A-Lightbar B-Suction cup C-GS2 1800 Display

D-R.h console harness E-GreenStar™ Ready Harness 2- and 4- pin connectors

F-StarFire receiver

G-Original GreenStar™ display

OUCC002,0002996 -19-08JUL08-1/2

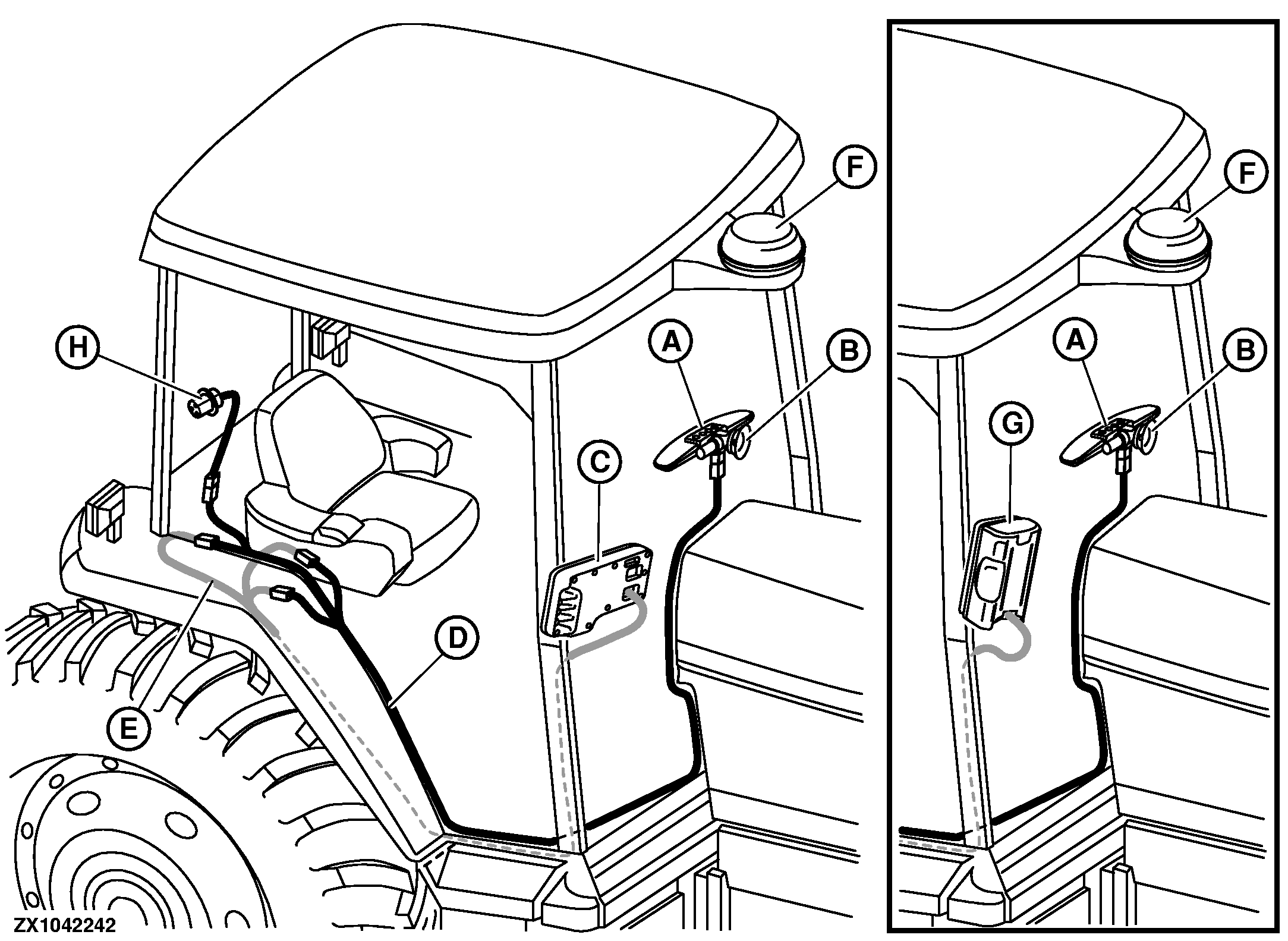

A-Lightbar B-Suction cup C-GS2 1800 Display

D-R.h console harness E-GreenStar™ Ready Harness 2- and 4- pin connectors

F-StarFire receiver G-Original GreenStar™ display

H-Power adapter harness

NOTE: GS2 1800 (C) and Original GreenStar™ (G) displays are optional. With the R.h. console

harness (D) the Lightbar system can be used in standalone or companion mode.

OUCC002,0002996 -19-08JUL08-2/2
