Lightbar System Fuse Protection

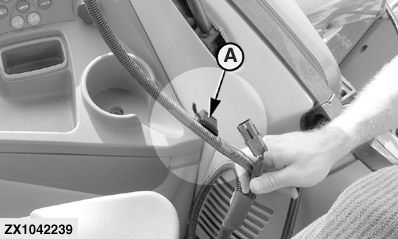

  • Standalone Configuration: A 10A fuse (A) located on power supply harness protects the Lightbar system.

  • Display Configuration: The tractor electrical system protects the Lightbar system. To identify which fuse protects the Lightbar system, refer to the tractor Operator's Manual.


A-Fuse-10 A

ZX1042239

OUCC002,00029A8 -19-24JUN08-1/1
