Installing Cutterhead With Harvesting Unit

Make sure that lift cylinder arms are vertical. Clearances between bottom and bearing shell center on forage harvester and between bottom and bearing on cutterhead must be approximately the same.

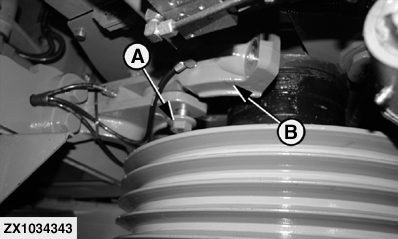

Use bearing shell bolts (A) to secure upper bearing shells (B) in up position as shown.

IMPORTANT: Insert bolts only so far that they are flush with inner surface.

For further cutterhead installation, reverse removal procedure.

Tighten bolts (A) to specified torque.

Specification

Cutterhead bearing shell fixing bolts -Torque 650 Nm (480 lb-ft)


A-Bolt
B-Bearing shell

ZX1034343
ZX1030947

Bearing Shell Bolt, Right-Hand

ZX1030948

Bearing Shell Bolt, Left-Hand

OUCC002,00000AA -19-12OCT05-1/1
