Extra Fuses

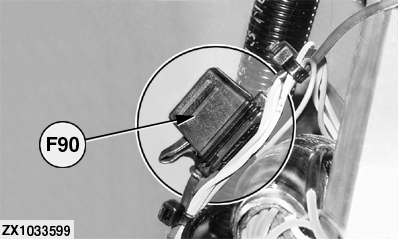

Fuse F90 is located in the load center on the l.h. side of fuse / relay board 3.


F90-7,5 amp fuse, JDLink

ZX1033599

OUCC002,00000BC -19-13OCT05-1/5

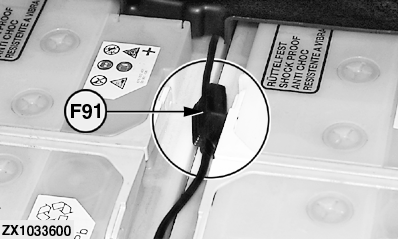

Fuse F91 is located in the battery compartment.


F91-2 amp fuse, Radio

ZX1033600

OUCC002,00000BC -19-13OCT05-2/5

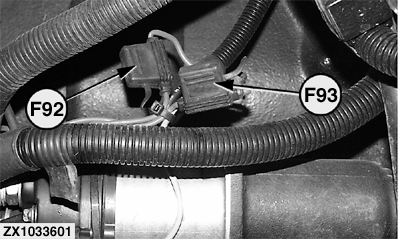

Fuses F92 and F93 are located near the starting motor.


F92-15 amp fuse, Cummins ECU
F93-15 amp fuse, Cummins ECU

ZX1033601

OUCC002,00000BC -19-13OCT05-3/5

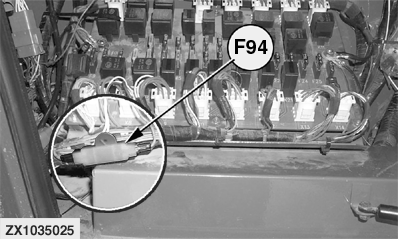

Fuse F94 is located in the load center on the l.h. side of fuse/relay board 3.


F94-Poly switch fuse (Gear lock)

ZX1035025

OUCC002,00000BC -19-13OCT05-4/5

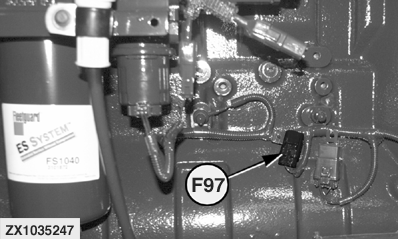

Fuse F97 is located near the fuel filter.


F97-Fuel primer pump fuse, Cummins ECU

ZX1035247

OUCC002,00000BC -19-13OCT05-5/5
