Refilling Hydraulic Oil

IMPORTANT: Always use specified oil (see "Fuel, Lubricants, Coolant and Capacities" Section). Carefully clean filler neck area before filling with fresh oil.

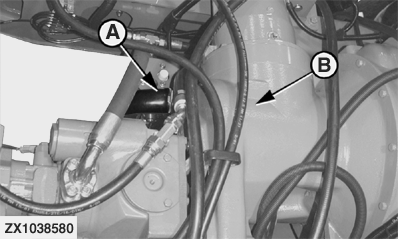

Refilling Bevel Gear Drive with Oil:

Remove overflow hose (A) from bevel gear case (B).

By means of a hose and a funnel, refill approx. 11 L (2.9 U.S. gal) of fresh oil through filler neck. Reinstall overflow hose (A).

ZX1038580


A-Overflow Hose
B-Bevel Gear Case

OUCC002,00000C6 -19-14OCT05-1/2

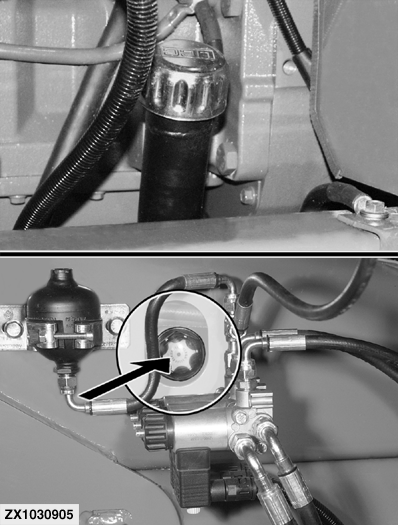

Refilling Hydraulic Oil Tank with Oil:

Refill at filler neck up to sight glass.

ZX1030905

OUCC002,00000C6 -19-14OCT05-2/2
