Reset Function

After pressing the row guidance enable switch (A) and the Deere switch (B) simultaneously for 10 seconds, the overhead control panel control unit will generate a message to the other control units to reset their calibration addresses to default settings (interactive calibrations will remain).

All calibration addresses of all control units will be reset to stored default values by the reset command from the overhead control panel control unit.

An acknowledgement by a short beep will sound after expiration of the 10-second period.

Following operator accessible addresses are retrieved with the reset function:

    Armrest Control Unit

  • ARC 100 - Spout Fast Rotate Delay Configuration
  • ARC 101 - Fast Throttle Speed
  • ARC 102 - Slow Throttle Speed
  • ARC 103 - Slow Throttle Speed Hold Time
  • ARC 104 - Button 1 Configuration
  • ARC 105 - Button 2 Configuration
  • ARC 106 - Button 3 Configuration
  • ARC 107 - Circular Button Configuration
  • ARC 108 - Control Options

    Corner Post Control Unit

  • RCP 103 - Display Configuration
  • RCP 104 - Operator Options

    Row Guidance Control Unit

  • RGC 101 - Ratio Setting
  • RGC 102 - Filter Setting

    Metal Detector Control Unit

  • SIG 101 - Sensor Initial Threshold
  • SIG 104 - Control Options
  • SIG 105 - Automatic Lubrication On Time Calibration (Option)

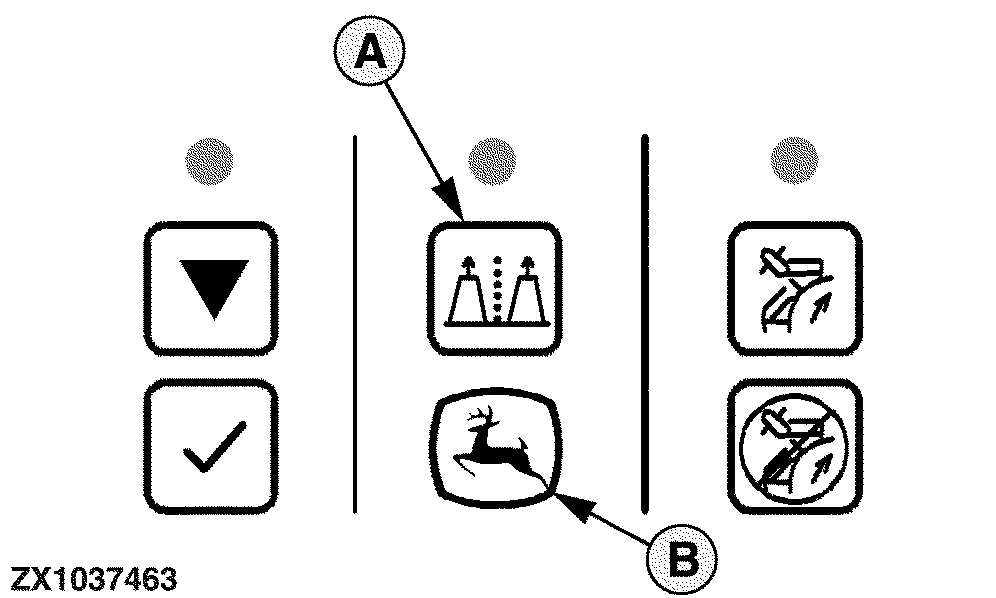

    ZX1037463


    A-Row Guidance Enable Switch
    B-Deere Switch

OUCC002,00020E8 -19-03NOV05-1/2

  • SIG 106 - Automatic Lubrication Off Time Calibration (Option)

    SPFH Main Control Unit

  • SPF 104 - Control Options
  • SPF 115 - Minimum Cutterhead Speed For Harvesting

OUCC002,00020E8 -19-03NOV05-2/2
