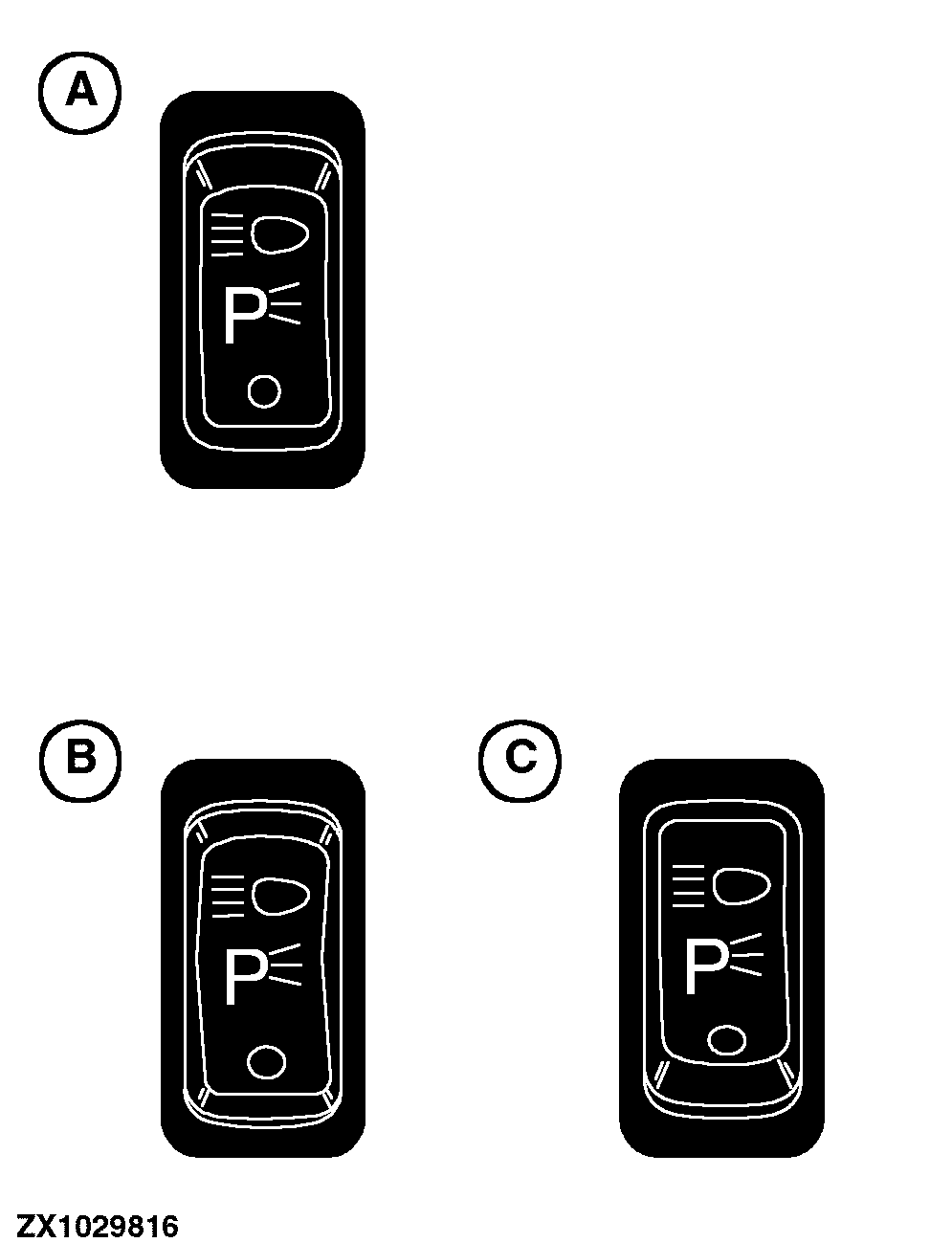

Road Lights
ZX1029816

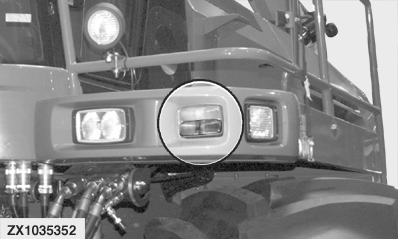

Road Light Switch
ZX1035352

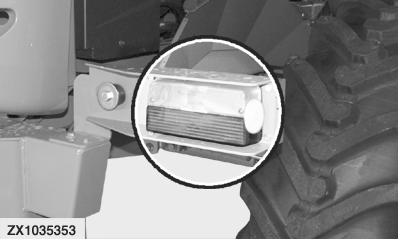

Parking Lights, Front
ZX1035353

Road Lights, Rear

ZX1029806

Road Lights, Front

ZX1038049

Road Lights, Front (From SN508100)

OUCC002,00020EA -19-03NOV05-1/5


A-Road Lights, Off
B-Road Lights, On (Parking Lights, Instrument Lighting; License Light and Clearance Lights in Certain Countries Only)
C-Road Lights, On

causym CAUTION: Lights must be turned on when transporting.

The three position road light switch controls parking lights, instrument lights and turn signals when turn signal lever is used (middle switch position).

The three position road light switch also controls road lights (top switch position).

The road lights at the operator's station are available as:

1. H3 Headlights
2. Double Beam Headlights
3. HID (Xenon) Headlights

OUCC002,00020EA -19-03NOV05-2/5

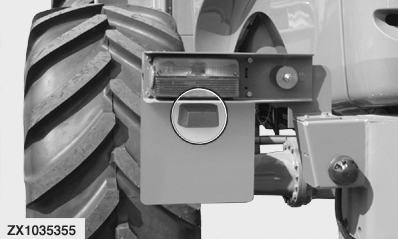

License light (in certain countries only).

ZX1035355

License Light

OUCC002,00020EA -19-03NOV05-3/5

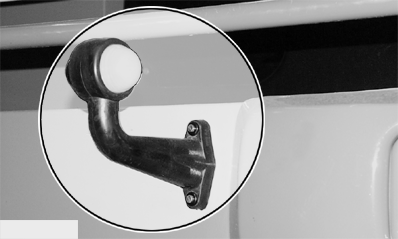

Clearance lights (in certain countries only).

ZX1029833

Clearance Lights

OUCC002,00020EA -19-03NOV05-4/5

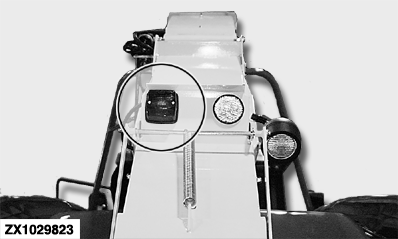

Stop Lights (Acting as Brake Lights)

Additional stop lights for discharge spout extension light up when foot brakes are operated (with ignition turned on).

ZX1029823

Stop Lights - Discharge Spout Extension

OUCC002,00020EA -19-03NOV05-5/5
